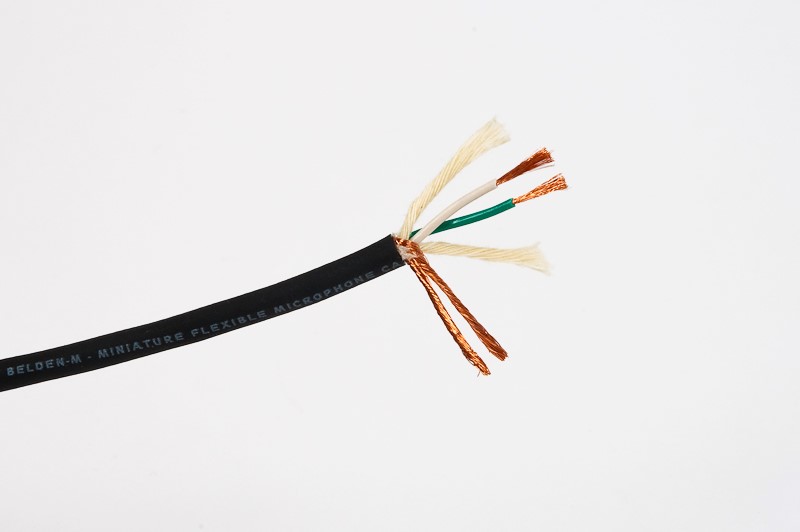

Câble de microphone 2 COND 24 AWG (105X44), cuivre nu

Internal Reference :
Description :
#CABLEK:

ZBE-9397/1000

    Cette combinaison n'existe pas.

    1 900,00 $ 1900.0 CAD 1 900,00 $

    1 900,00 $

    Disponibilité: En inventaire
    Quantité:

    Référence interne: ZBE-9397/1000



    Belden Wire 9397 24/1P Spiral Shielded Low Impedance Microphone Cable

    24 AWG stranded (105x44) high-conductivity bare copper conductors, PVC insulation, double bare copper spiral shield (95% coverage), PVC jacket

    .

    Physical Characteristics (Overall) Conductor

    AWG Stranding Material Nominal Diameter No. of Conductors
    24 105x44 BC - Bare Copper (High Conductivity) 0.024 in 2

    Conductor Count

    2

    Insulation

    Material Nominal Diameter Nominal Wall Thickness
    PVC - Polyvinyl Chloride 0.048 in 0.012 in

    Outer Shield

    Type Material Coverage [%]
    Spiral Serve / Screen Bare Copper (BC) 95%

    Outer Jacket

    Material Nominal Diameter Nominal Wall Thickness
    PVC - Polyvinyl Chloride 0.176 in 0.031 in

    Electrical Characteristics Conductor DCR

    Nominal Conductor DCR Nominal Conductor DCR Conductor Resistance
    24.6 Ohm/1000ft 24.6 Ohm/1000ft

    Capacitance

    Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Other Conductor to Shield
    47.3 pF/ft 110 pF/ft

    Inductance

    Nominal Inductance
    0.19 µH/ft

    Impedance

    Nominal Characteristic Impedance
    47 Ohm

    Current

    Max. Recommended Current [A]
    3.36 Amps per Conductor at 25ºC

    Voltage

    Non-UL Voltage Rating
    300 V RMS

    Temperature Range

    Non-UL Temp Rating

    80°C

    Operating Temperature Range

    -20°C To +80°C

    Mechanical Characteristics

    Bulk Cable Weight

    22 lbs/1000ft

    Max. Pull Tension

    10 lbs

    Min. Bend Radius/Minor Axis

    1.75 in

    Applicable Environmental and Other Programs

    Environmental Space

    Indoor (Not Riser or Plenum)

    EU Directive 2000/53/EC (ELV)

    Yes

    EU Directive 2003/11/EC (BFR)

    Yes

    EU Directive 2011/65/EU (RoHS 2)

    Yes

    EU Directive 2012/19/EU (WEEE)

    Yes

    EU Directive 2015/863/EU (RoHS 2 amendment)

    Yes

    EU Directive Compliance

    EU Directive 2003/11/EC (BFR)

    EU CE Mark

    Yes

    MII Order #39 (China RoHS)

    Yes

    Suitability

    Suitability - Indoor

    Yes

    Plenum/Non-Plenum

    Plenum (Y/N)

    No

    Related Part Numbers

    Footnote

    C - CRATE REEL PUT-UP.
