Splitter Cable NEMA L6-30P to 2x NEMA L6-30R - 10AWG (30A 250V)
Internal Reference :Description :
#CABLEK:
PCC-L630Y-1P2R-2
Internal Reference:
PCC-L630Y-1P2R-2
Splitter Cable NEMA L6-30P to 2x NEMA L6-30R - 10AWG (30A 250V)

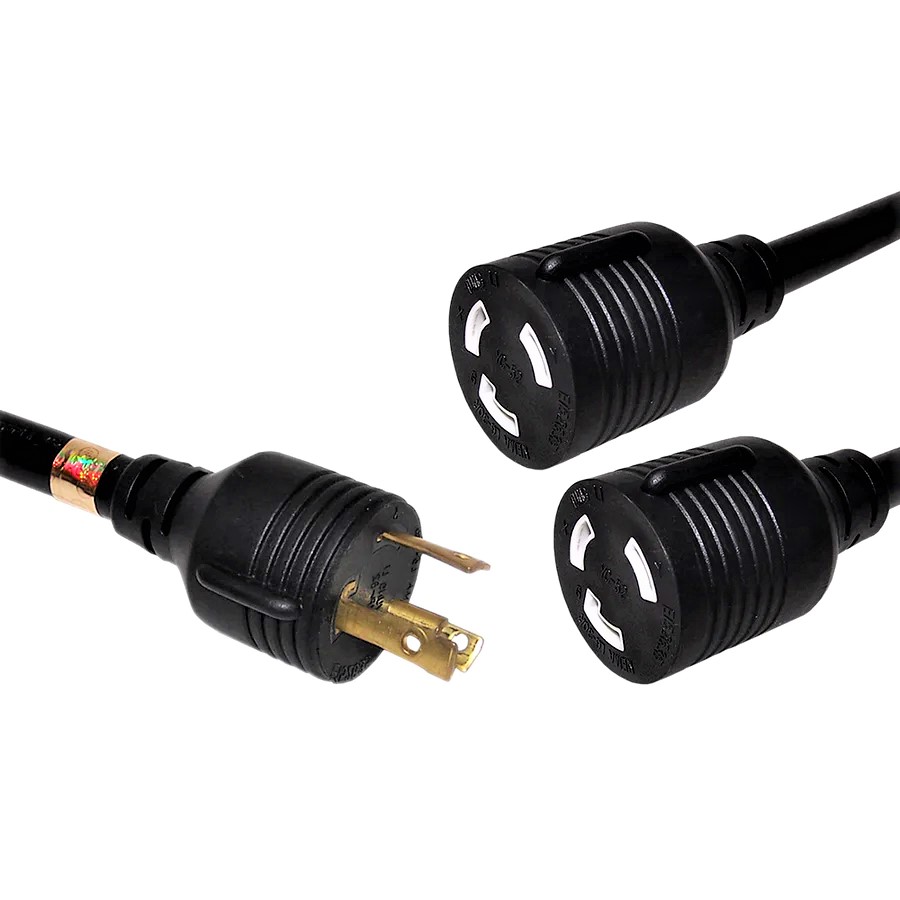

This power cord consists of a L6-30P male on one end and two L6-30R females on the other end. It is typically used on devices with multiple power supplies sharing one receptacle. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and high quality molds. The connectors premium quality to ensure a snug fit into PDU receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.
Physical Characteristics | |
---|---|
Cable Length | 2 foot [0.6m] |
Color | Black |
Number of Conductors | 3 Conductor |
Wire Gauge | 10AWG |
Jacket | Heavy Duty SJT |
Jacket Material | 100% Virgin PVC - Polyvinyl Chloride |
Jacket Fire Rating | FT2 VW-1 |
Strain Relief | Molded 100% Virgin PVC |
Temperature Rating | -20℃ to 105℃ |
Connector(s) | |
Connector A | NEMA L6-30P |
Connector B | NEMA L6-30R |
Connector B | NEMA L6-30R |
Performance | |
Power Rating | 30 Amp / 250 Volt |
Approvals | |
L6-30P | c(UL)us, CSA |
L6-30R | c(UL)us, CSA |
L6-30R | c(UL)us, CSA |
Cable | c(UL)us, CSA |
ISO | ISO 9001:2000, ISO 14000 |
Environmental | |
RoHS | Yes |
Reach | Yes |
Conflict Minerals | Yes |
Packaging Information | |
Package Quantity | 1 |
Product Weight | 1.42 lbs [0.6kg] |
Warranty Information | |
Warranty | Limited Lifetime |
