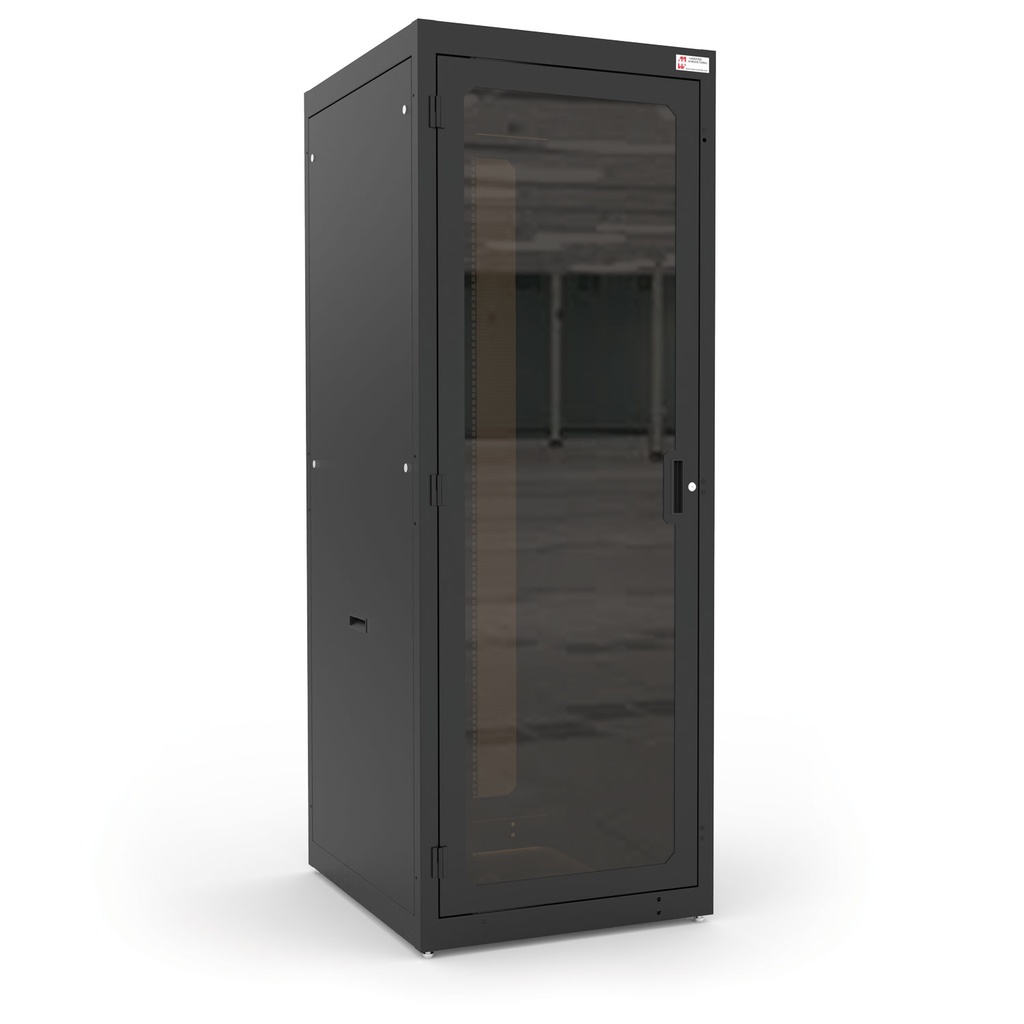

Server Cabinet 44U 36" Depth

Server Cabinet Assembly  30" Wide 44U 36" Depth

Data Cabinet (30x77x36)

• Extra generous cabling space
• Support for up to four optional 4" deep vertical cable managers

The 30” wide includes:

• The 30” wide C4 rails have cable-tie support and pass-through holes.
• Vertical cable trays are available for both 24” and 30“ width cabinets
• Vertical cable managers feature magnetic latching doors, and 3.5” wide x 4” deep cable space and are available for 30“ width cabinets

30” Width Frame Features:

• Mounting rails include cable-tie support and cable pass-through holes.
• The cabinet top includes four (4) 3.5” wide cable entry holes.
• Support for vertical cable managers without obstructing mounting rails.
• 36" overall depth.
• C-channel struts provide cabinet strength, ease and flexibility to adjust mounting rails.
• Flush-mounted doors with quarter-turn lock.
• One (1) interchangeable top panel.

Cabinet frame constructed in 14-gauge mild steel with 12-gauge mild steel reinforced corner brackets.

• Cabinet doors and side panels constructed in 16-gauge steel.
• Square hole 19" mounting rails are constructed in 12-gauge steel, include rack unit indicators, and are Zinc-plated to provide superior surface areas for equipment grounding.
• UL Listed 2416 load rated for up to 3,000 lbs (1,360 kg). Static Load tested to 12,000 lbs (5,443 kg).
• Seismic rated up to 1,200 lbs (544 kg) of dynamic load with an Ip factor of 1.5 in accordance with the IBC 2018, CBC 2019, NBC 2015, ASCE 7-16 and ASCE 7-10. Requires a seismic bolt-down kit such as the C4K-Z4 (sold separately).
• Grounding studs are provided on the frame as well as side panels and doors. Front and rear studs on cabinet frame conform to PET.
• Finished in textured RAL9005 black powder paint.
• Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
• TAA-compliant for GSA Schedule purchases.
• RoHS Compliant.
• Manufactured in North America within an ISO 9001:2015 certified facility.
