USB 3.0 A Male to B MaleInternal Reference :

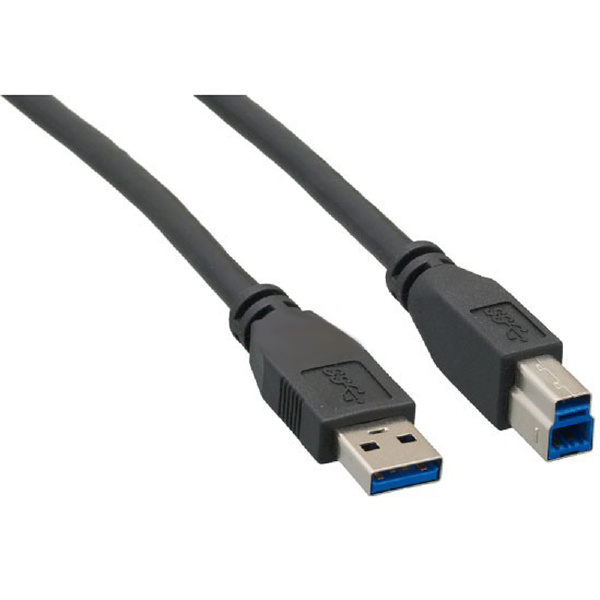

SuperSpeed USB 3.0 cable A-B
SuperSpeed USB 3.0 cable (A-B) offers a durable, high quality connection that harnesses the full capability of the USB 3.0 standard.
Designed for next-generation SuperSpeed USB device connections, this USB 3.0 A to B Male/Male cable provides connectivity between a PC and hub or other USB A devices, delivering a throughput of up to 4.8Gbps when used with a USB 3.0 host and device - an astounding 10x the capability of USB 2.0 (480Mbps).
It is a Duplex cable simultaneously sending and receiving data yet is backwards compatible with computer USB 2.0 and USB 1.1 ports - these cables also allow connection of USB 3.0 devices to legacy USB 2.0 computers.
USB 3.0 A to B device cables feature high quality Shielded Twisted Pair (STP) construction, helping to prevent electro-magnetic interference and ensuring reliable data communication.
- Connector 1: 9 pin USB 3.0 A Male
- Connector 2: 9 pin USB 3.0 B Male
- Type and Rate: USB 3.0 - 4.8 Gbit/s
- PC and Mac compatible
- Supports plug and play connections for devices such as external hard drives, modems, printers, scanners, VOIP devices other USB peripherals
- Wire Guage: 28 AWG
- Cable Jacket Type: PVC - Polyvinyl Chloride
- Cable Shield Type: Foil shielded twisted pair
- Color: Blue
- Shipping (Package) Weight: .32 lb [0.14 kg]
- Warranty: Lifetime
USB 3.0 Cable SuperSpeed
cable is the next generation cable which is also called the super-speed
USB cable. USB 3.0 cable is designed to provide 10 times the data
transfer speed than USB 2.0, the data transfer rate of USB 3.0 will come
up to 4.8 Gbps theoretically.
cable retains the former USB products plug and play feature and it is
fully compatible with former USB 2.0. USB 3.0 cable connectors are added
5 channels compared with USB 2.0, 4 of the 5 channels are used for a
full duplex data transmission.
cable is not only higher speed but more efficient in power supply. Many
digital products in the market will need to be powered via USB
interface, USB 3.0 cable power ability is 900mA compared with former USB
500mA per port, this feature of USB 3.0 cable help make devices like
mobile hard drives use less extra power lines and the USB hub could
connect more equipment at the same time.
that more power-hungry devices could be bus powered, and battery powered
devices that previously charged using bus power could potentially
charge more quickly. |
USB Motherboard Connections
|Length||3' or 6' or 10' or 15' or 20' or 25'|
