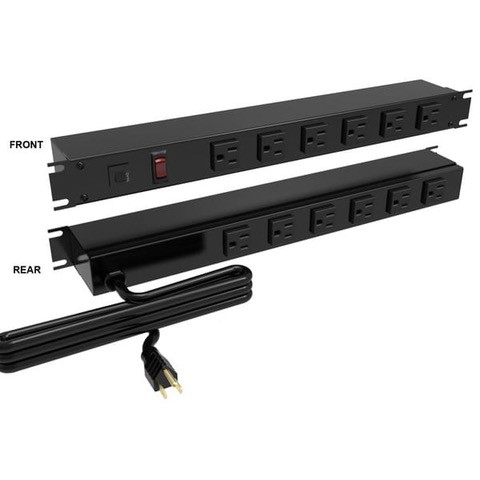

1U Horizontal 19" Rackmount Avant/Arrière 12 Prises PDU 15A 125V

15A | Single-Phase 125V | Front and/or Rear Facing 5-15R Outlets

Highlights

• 6 Front and 6 Rear Facing 5-15R Outlet, Plug Straight Blade 5-15P, 6 Foot Cord Length
• 2 outlets with extra spacing for clearance of most plug in transformers
• Designed for power distribution from the rear of the unit
• 1U horizontal 19" rackmount installation
• Lighted on/off switch
• Heavy duty 14 gauge wire cord - 14/3 SJT type for extreme temperature ranges and integral molded plug
• Includes 15 Amp, 125 VAC circuit breaker to prevent accidental overload
• UL/cUL recognized Standard UL1363 file No. E166039 & CSA C22.2 No. 308-14 & CSA C22.2 No. 0.4-04

Features

• Designed for power distribution from the rear of the unit.
• 1U horizontal 19" rackmount installation.
• Available with an illuminated on/off rocker switch or red power indicator light.
• Plug types available are NEMA 5-15P straight blade or NEMA L5-15P locking type.
• Rotated options include outlets with extra spacing for clearance of most plug-in transformers.

General Specifications

• Heavy-duty 14 gauge wire cord - 14/3 SJT type for extreme temperature ranges and integral moulded plug.
• Includes 15 Amp, 125 VAC circuit breaker to prevent accidental overload.
• UL/cUL recognized Standard UL1363 File No. E166039 & CSA C22.2 No. 308-14 & CSA C22.2 No. 0.4-04
• Finished in RAL9005 black or ASA61 gray powder paint finish.
• TAA-compliant for GSA Schedule purchases.
• RoHS and REACH compliant.
• Manufactured in North America.

Metered Specifications

• Unit includes - easy to read 0.37" high, red LED ammeter (1.38" x 0.88" display).
• Digital ammeter accuracy +/- 0.1 Amps

Surge Specifications

• Surge-protected panels incorporate our surge module:
  • Max Energy (Joules) is 1080 J.
  • 25000 Amp-rated MOV’s for 75,000 Amps of single pulse transient current.
  • Voltage Protection Rating (Vpr) of 500V in all three modes (L-N, L-G, N-G).
  • Nominal Discharge Current (In) of 5kA.
  • The green indicator light confirms surge module is active.
  • ​Internal protection will disconnect the surge module at the end of its useful life (and extinguish the green light) but will maintain power to the load, now unprotected.
• Voltage suppression at the outlet guards against transients from the equipment on the outlet strip.
• cRUus recognized to UL 1449 & C22.2 No. 269.3-17 & No. 269.4-17 for Surge Protective Devices – Type 3 & Type 4.
• cRUus recognized to UL 1363 & C22.2 No. 308-18 for Relocatable Power Taps & Multi Outlet Assemblies.

Shielded Cord Specifications

• Shielded cord reduces EMI/ RFI and "dirty" power from utilities.
• Shielding is by way of 100% coverage in aluminum mylar foil with a 20 gauge drain wire.
