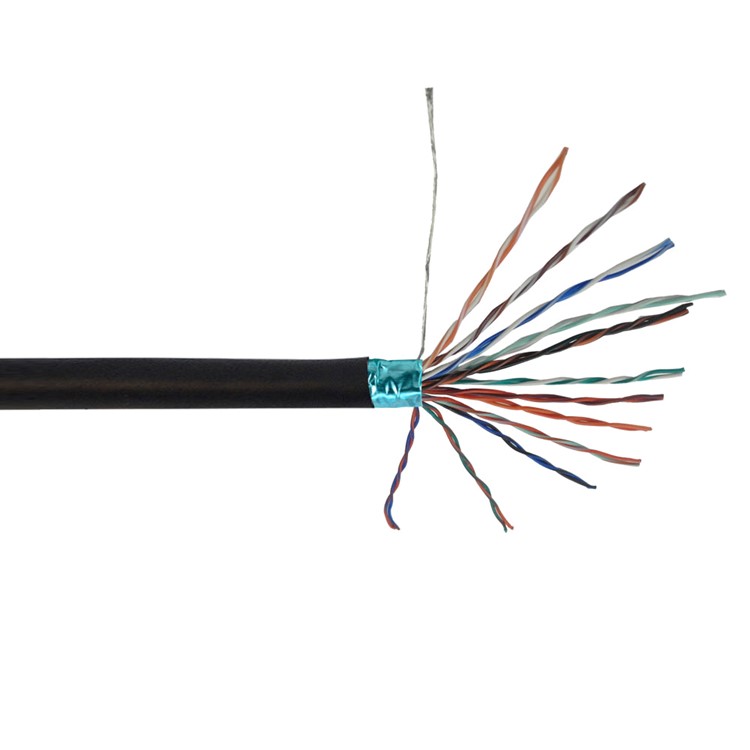

12.5 Pair Low Cap 24AWG Stranded Shielded Cable CSA FT4 - Black
Internal Reference :Description :
12.5 Pair Low Cap 24AWG Stranded Shielded Cable CSA FT4 - Black
This bulk low-cap data cable is 500ft in length and consists of 12.5 pairs of 24 gauge stranded with foil shield wire. It is typically used to interconnect RS-232 data applications.
| Physical Characteristics | |
|---|---|
| Cable Length | 100', 250', 500', 1000' |
| Color | Black |
| Cable Diameter | 9.50 mm |
| Number of Pairs | 12.5 Pairs |
| Wire Gauge | 24AWG |
| Conductor Material | Tinned Copper |
| Stranding Count & Diameter | 7/0.205±0.008 |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Rating | CMR/CL3/FT4 [Riser Rated] |
| Cable Shielding | 100% Mylar Foil |
| Temperature Rating | 75℃ |
| Electrical Features | |
| Voltage Rating |
30V |
| Dielectric Strength | AC-500V/MIN |
| Insulation Resistance | 10 M (OHMS*KM MIN at 20℃) |
| Approvals | |
| c(UL)us | Yes |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight |
100' 4.90 lbs [2.1kg]
250' 11.35 lbs [5.2kg] 500' 22.75 lbs [10.3kg] 1000' 45.19 lbs [20.5kg] |
Specifications
| Length | 100' or 250' or 500' or 1000' |
