12-Fiber Multimode OM4 12-Position MPO to 12x LC/UPC not clipped, OFNP Plenum

Internal Reference :
Description :

  • Length
    • 1 m
    • 2 m
    • 3 m
    • 5 m
    • 10 m
    • 20 m
    • 15 m
    • 30 m

This combination does not exist.

96.90 $ 96.9 CAD 96.90 $

0.00 $

Availability: In Stock
Quantity:



12-Fiber Multimode OM4 12-Position MPO Female no guide pins to 12x LC/UPC not clipped - OFNP Plenum

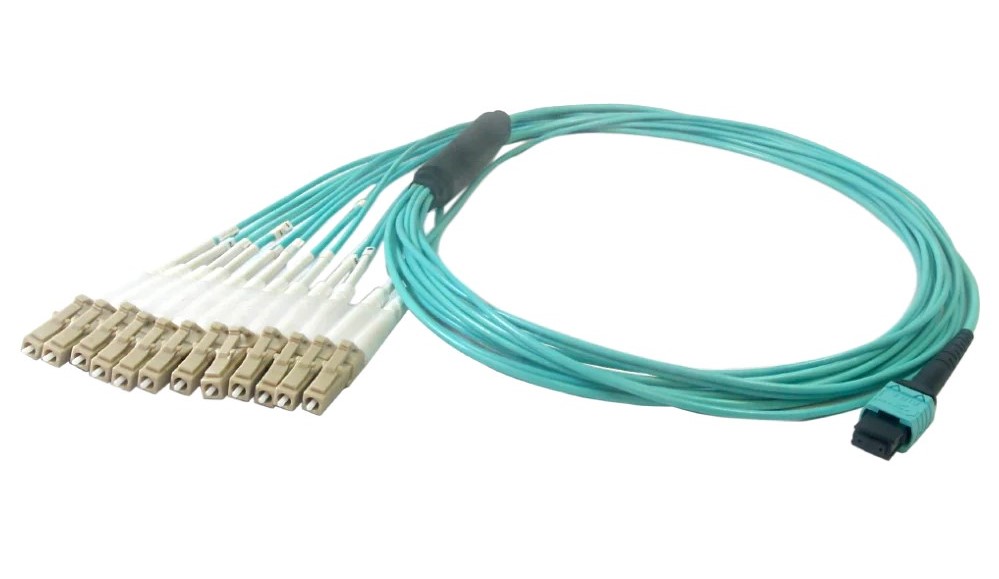

This multimode fiber optic MPO breakout cable is made with Corning glass fiber and consists of a MPO/MTP female connector on one end and 12 simplex LC male connectors on the other. It is used in high bandwidth datacenter applications connecting switches or MPO/MTP cassettes.

Physical Characteristics
Breakout Length 24 inches
Color Aqua
Cable Diameter 3mm
Fiber Count 12 Fibers
Fiber Type Multimode 50/125 Micron OM4
Glass Manufacturer Corning Glass
Jacket Rating Plenum (OFNP)
Connector(s)
Connector A 1 - 12-Position MPO Female (no guide pins) Elite Connectors
Connector B 12 - LC Simplex Male
Performance
MPO Insertion Loss ≤0.35 dB
MPO Return Loss ≥20db
LC Insertion Loss ≤0.3 dB
LC Return Loss ≥20 dB
Testing 100% IL, RL and Interferometer Tested
Environmental
RoHS Yes
UL UL Listed Cable
Packaging Information
Warranty Limited Lifetime

Cable Weights

3ft - 1m 6ft - 2m 10ft - 3m 15ft - 5m 30ft - 10m 50ft - 15m 65ft - 20m 100ft - 30m
0.17 lbs 0.20 lbs 0.22 lbs 0.27 lbs 0.38 lbs 0.48 lbs 0.60 lbs 0.82 lbs


Specifications

Length 1 m or 2 m or 3 m or 5 m or 10 m or 20 m or 15 m or 30 m
