12-Fiber Singlemode MPO/APC Female to MPO/APC Female - OFNP Plenum - Available with Method A & B Polarity

Internal Reference :
Description :

  • Length
    • 1 m
    • 2 m
    • 3 m
    • 5 m
    • 7 m
    • 10 m
    • 20 m
    • 15 m
    • 25 m
    • 30 m
    • 40 m
    • 50 m
  • Polarity

This combination does not exist.

144.90 $ 144.9 CAD 144.90 $

0.00 $

Availability: In Stock
Quantity:

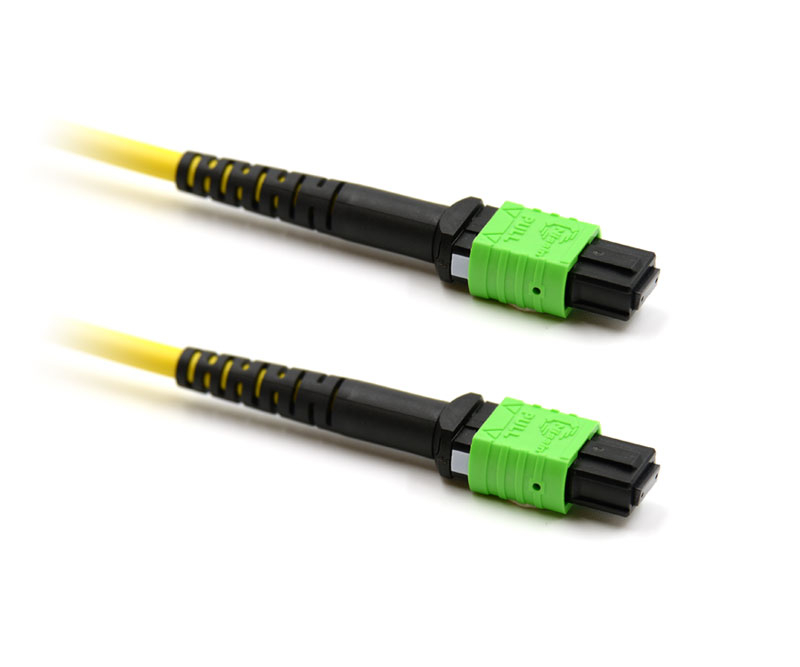

12-Fiber Singlemode MPO/APC Female no guide pins to MPO/APC Female no guide pins - OFNP Plenum - Available with Method A & B Polarity

This singlemode fiber optic MPO trunk cable is made with Corning glass fiber and consists of a MPO/MTP female connector on both ends. It is used in high bandwidth data center applications connecting switches or MPO/MTP cassettes.

MPO Polarity, Method A vs. Method B

MPO/MTP cables can be configured in a number of different polarities, method A, method B or method C.

Method A would be considered straight through, position 1-1, 2-2, 3-3 etc.

Method B is considered cross over, position 1-12, 2-11, 3-10 etc.

Method C would be the least common and is considered a paired cross over, position 1-2, 2-1, 3-4, 4-3 etc.

Cablek stocks method A and method B cables. Method C cables are available by special order. The diagrams below further highlight method A and method B polarities.

Method A

Method B

Physical Characteristics
Color Yellow
Cable Diameter 3mm
Fiber Count 12 Fibers
Fiber Type Singlemode 9/125 Micron
Glass Manufacturer Corning Glass
Jacket Rating Plenum (OFNP)
Connector(s)
Connector A 1 - 12-Position MPO/APC Female (no guide pins) Elite Connectors
Connector B 1 - 12-Position MPO/APC Female (no guide pins) Elite Connectors
Performance
Insertion Loss ≤0.35 dB
Return Loss ≥60db
testing 100% IL, RL and Interferometer Tested
Environmental
RoHS Yes
UL UL Listed Cable
Packaging Information
Warranty Limited Lifetime

Cable Weights

3ft - 1m 6ft - 2m 10ft - 3m 15ft - 5m 23ft - 7m 33ft - 10m 50ft - 15m 65ft - 20m 80ft - 25m 100ft - 30m 164ft - 50m
0.04 lbs 0.07 lbs 0.09 lbs 0.13 lbs 0.18 lbs 0.23 lbs 0.35 lbs 0.47 lbs 0.56 lbs 0.66 lbs 1.08 lbs


Specifications

Length 1 m or 2 m or 3 m or 5 m or 7 m or 10 m or 20 m or 15 m or 25 m or 30 m or 40 m or 50 m
Polarity A or B
