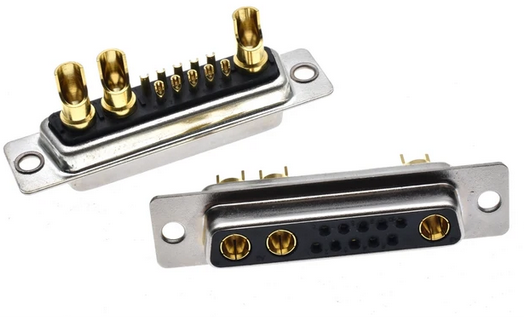

13W3 FEMALE SOLDER CONN.

D-sub 13W3 Female Solder Type Connector

 Features:

• Combo D-sub Connectors,Plug,13W3, 2 Rows, Single Port, Straight
• Type,Machined Pin,Gold plated,Solder Cup,Cable,Unthreaded,IP20,Without Filtered.
• Space saving,Cost-effective;
• Large variety of mounting options,RoHS Compliant;
• High Quality with 30 days 100% Money back;
• From the OEM Original Factory, same quality with much better price.

Applications:

• medical electronics
• wireless outdoor telecom systems
• industrial automation
• oil exploration
• printers and displays
• diagnostic systems

Technical Parameters

Electrical Characteristics

• Current Rating: Signal & Power Contacts 300 VRMS at 50 Hz
• Frequency range: 0 -1 GHz
• VSWR: 1.4 (+0.04/GHz)
• Characteristic Impedance:50 Ohms
• Dielectric Withstanding Voltage ≥ 1000V R.M.S. at 50Hz
• Insulation Resistance ≥ 5000 megaohms at 500 V D.C.
• Contact Resistance ≤5 milliohms

Mechanical Characteristics

• Mechanical operations ：up to 500

Environmental Characteristics

• Operating Temperature：67°F (-55°C) to 311°F (+155°C)
                                        with peaks up to 356°F (180°C)
