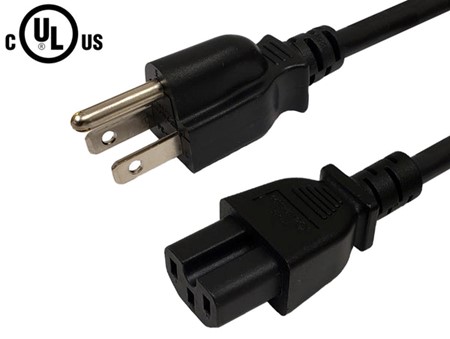

5-15P to IEC C15 14AWG NEMA Power Cable

Internal Reference :
Description :

  • Length
    • 3'
    • 6'
    • 8'
    • 10'
    • 12'
    • 15'

This combination does not exist.

8.90 $ 8.9 CAD 8.90 $

0.00 $

Availability: In Stock
Quantity:



This power cord consists of a 5-15P male on one end and a C15 female on the other end. It is typically used to connect a server or UPS to a PDU or a wall outlet. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. The connectors premium quality ensures a snug fit with receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.

Heavy Duty SJT Jacket

Molded strain relief combined with a heavy duty SJT jacket makes for a high quality, robust cable.

100% Continuity and High Voltage Tested

All cables are 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.

c(UL)us Approved

Both cable and connectors use to manufacture these assemblies are c(UL)us approved. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector.

Specifications

Physical Characteristics
Color Black / Blue / Green / Red / White / Yellow
Number of Conductors 3 Conductor
Wire Gauge 14 AWG
Jacket Heavy Duty SJT
Jacket Material 100% Virgin PVC - Polyvinyl Chloride
Jacket Fire Rating VW-1
Strain Relief Molded 100% Virgin PVC
Temperature Rating -20 deg C to 105 deg C
Connector(s)
Connector A IEC 60320 C15
Connector B NEMA 5-15P
Performance
Power Rating 15 Amp / 125 Volt
Approvals
C15 c(UL)us
5-15P c(UL)us
Cable c(UL)us
ISO ISO 9001:2000, ISO 14000
Product Support
RoHS Yes
Reach Yes
Conflict Minerals Yes
Country of Origin Vietnam
Packaging Information
Package Quantity 1
Warranty Information
Warranty Limited Lifetime


Specifications

Length 3' or 6' or 8' or 10' or 12' or 15'
