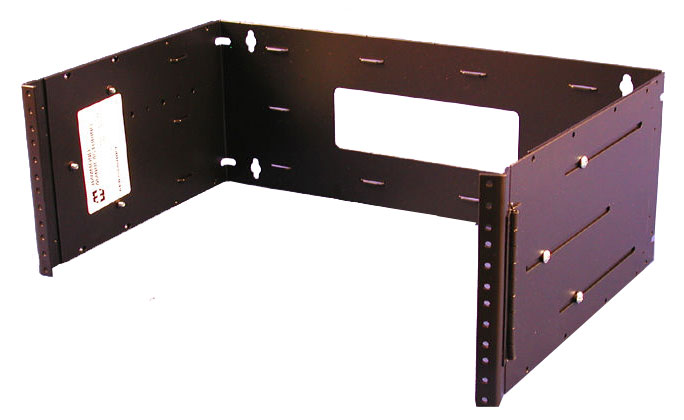

Adjustable wall mount brackets - 19"

Adjustable wall mount brackets in 4U, 8U, 12U

Features

• Adjustable depth bracket rack for 19” rack mount equipment.
• Full EIA hole centers (5/8 - 5/8 - 1/2 inch spacing) drilled and tapped for 10-32 hardware.
• Double hinged on one side to access rear of equipment.
• Smooth 8" x 2.5" hole on the rear for wire access.
• Includes a printed - full scale mounting template for easy installation.
• Adjustable depth from 12 to 18".
• Rear mounting holes are key holes for easy installation.
• Multiple cable lacing tie offs punched into unit.
• Includes 10-32 black rack screws with integral - factory installed, mar resistant black nylon washer.
• Heavy duty - 14 gauge formed steel.
• Weight load testedto 70 pounds.
• Rugged textured black powder paint finish.
• Wall mounting hardware not included.

Quick Facts


For Use With: 19" Rack Mount Equipment
Enclosure Material: Steel
External Width: 19.25" Adjustable depth: 12 to 18" RoHS Compliant: Yes
