  2. Belden 1694F-7 Flexible RG6 PVC Low Loss Serial Digital Coax Cable Purple (19/7)

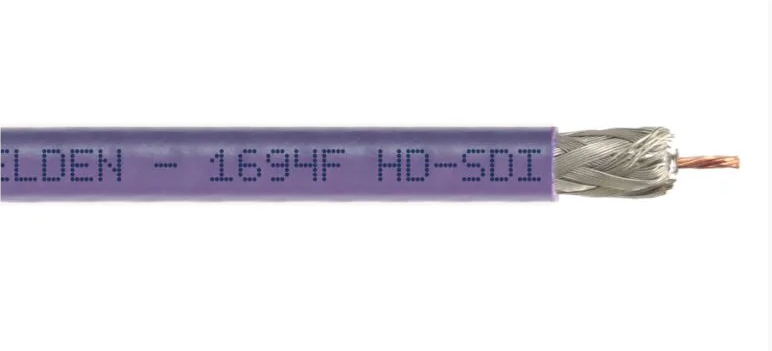

Belden 1694F-7 Flexible RG6 PVC Low Loss Serial Digital Coax Cable Purple (19/7)

Internal Reference :
Description :

  • Length
    • 250'
    • 500'
    • 1000'

This combination does not exist.

495.00 $ 495.0 CAD 495.00 $

0.00 $

Availability: In Stock
Quantity:



75 Ohm SDI Coax, RG-6, 19 AWG (7x27) Bare Copper Conductor, PE Insulation, Double 95% Tinned Copper Braid Shield, PVC Jacket, CM, Flexible - SDI / HDSDI Cable Purple

RG6 is commonly used for digital HDTV, CATV, satellite television, and outdoor TV antennas installations. This cable features a UL listed, CM Rated PVC flexible jacket. Internally this cable is protected from RFI and EMI interference by a dual 95% tinned copper braid. The center conductor is sweep tested from 5 MHz to 4.5 GHz, and is made from 19 AWG, stranded bare copper. This bulk cable comes in a high-quality, easy pull box and can be measured and cut to exact distances. RG6 is commonly terminated with an F-Type, BNC, or RCA connector.

Features:
  • 75 Ohm
  • 19 AWG Stranded Bare Copper Conductor
  • Dual 95% Tinned Copper Braids
  • FHDPE (Foam High Density Polyethylene) Insulation
  • PVC Jacket
  • CM Rated
  • UL Listed
  • Sweep-Tested 5 MHz to 4.5 GHz
  • Professional Grade
  • Digital and Analog Video Applications
  • Low Loss Serial Digital
  • Foot Markings
  • Max Continuous Length: 1000 Feet


Specifications

Length 250' or 500' or 1000'
