CAT5e Stranded Shielded Hi-Flex Rugged 4 Pair 26AWG Cable - Black Pur Jacket
Internal Reference :Description :
DataMax Extreme Ethernet Cat 5e – 26 AWG, 4 pair, shielded, PUR, Black

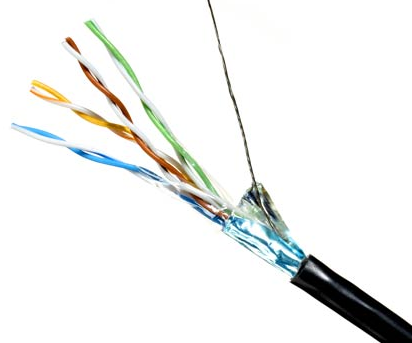

This bulk Cat5e cable consists of 4 pairs of 26AWG stranded wires. It is a Hi-Flex bulk cable suitable for harsh environments.
Features:
- Hi-Flex bulk cable
- Ideally used for harsh environment applications
Physical Characteristics | |
---|---|
Color | Black |
Number of Pairs | 4 Pairs |
Wire Gauge | 26AWG Stranded |
Conductor Material | Stranded Tinned Copper |
Stranding Count | 7/34 |
UV Resistant Jacket | Yes |
Jacket | Polyurethane |
Overall Diameter | 0.220 inches |
Nominal Diameter | 0.019 inches (Conductor) 0.039 inches max (Insulation) 0.078 inches (Pairs) 0.170 inches (Cable) 0.176 inches (Shield) |
Temperature Rating | -40 deg C to 75 deg C |
Electrical Characteristics (per 100m / per 328ft) | |
Mutual Capacitance | 13.5 pf/ft. at 1 MHz |
Minimum Dielectric Withstanding | 1500V RMS |
Max Voltage Rating | 300V |
Max D.C. Resistance | 42.6 Ω/1000ft |
Impedance | 100 +/- 15 Ω 1 to 100 MHz |
SRL | 23 dB 1-20 MHz 23 - 10 log(ƒ/20) 20-100 MHz |
Return Loss |
1 ≤ ƒ < 10 MHz 20 + 5 log(ƒ) dB MIN 10 ≤ ƒ < 20 MHz 25 dB MIN 20 ≤ ƒ ≤ 100 MHz 25 - 8.6 log(ƒ/20) dB MIN |
PS NEXT NEXT PSACRF ACRF |
1 ≤ ƒ < 100 MHz 32.3 - 15 log(ƒ/100) min 1 ≤ ƒ < 100 MHz 35.3 - 15 log(ƒ/100) min 1 ≤ ƒ < 100 MHz 20.8 - 20 log(ƒ/100) min 1 ≤ ƒ < 100 MHz 23.8 - 20 log(ƒ/100) min |
Insertion Loss | 1 ≤ ƒ ≤ 100 MHz 1.5[1.967 √ƒ + 0.023(ƒ) + 0.050/√ƒ dB MAX |
Delay | 1 ≤ ƒ ≤ 100 MHz 534 + 36/√ƒ ns MAX |
Delay Skew | 1 ≤ ƒ ≤ 100 MHz < 25ns |
LCL | 1 ≤ ƒ ≤ 100 MHz -38dB MIN |
Velocity of Propagation | 68% |
Environmental | |
RoHS | Yes |
Specifications
Length | 250' or 500' or 1000' |
