Cat6 Patch Panels with 110 Termination

Internal Reference :
Description :

  • Number of Ports
    • 12
    • 24
    • 48

This combination does not exist.

60.00 $ 60.0 CAD 60.00 $

0.00 $

Availability: In Stock
Quantity:

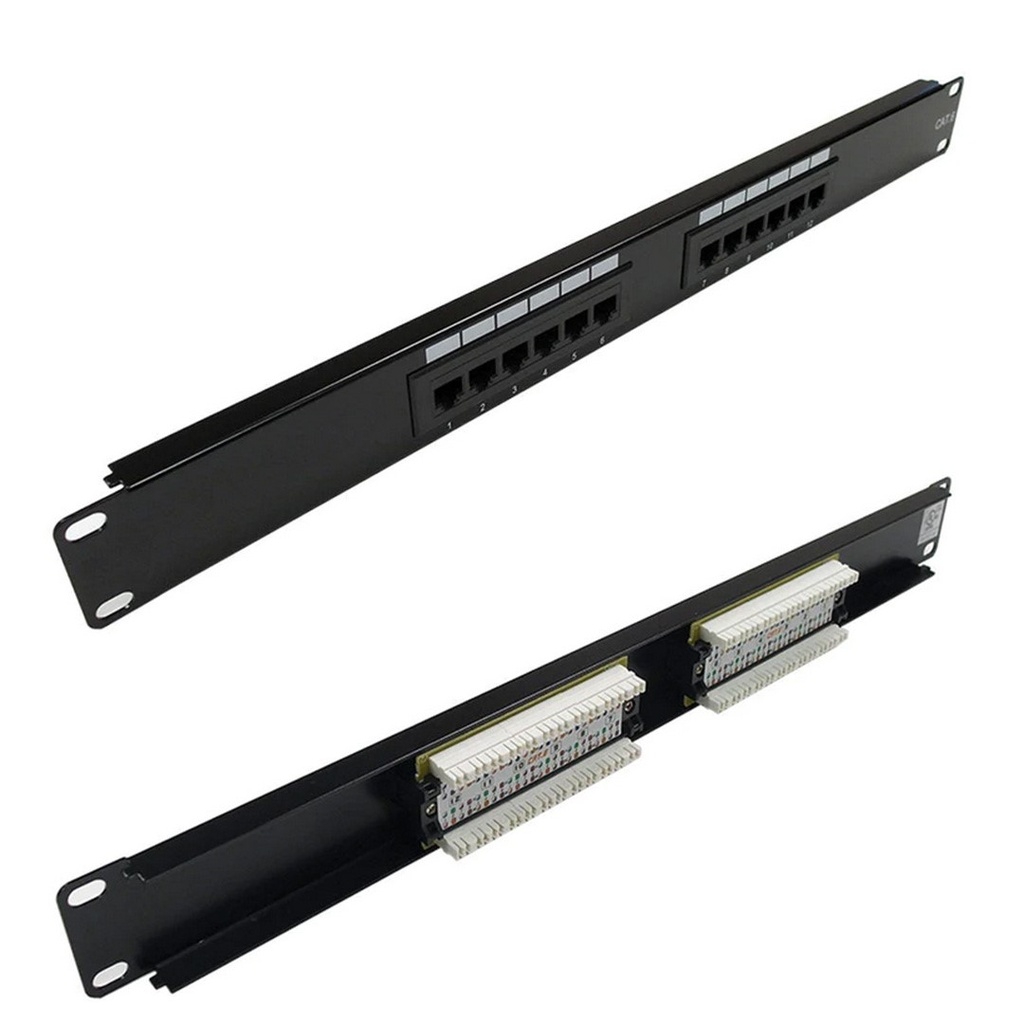

Cat6 Patch Panels with 110 Termination

Cablek's CAT 6  patch panels are used for high-speed LANs and are capable of carrying a data speed up to 2 Gb/s and use printed circuit board technology to meet Category 6 specifications. They come with new version  110D terminal block which can be used with both "Krone & 110" punch tools. They have 568B and 568A color coding on the IDC jack and on the panel for easy installation.

  • Meets TIA/EIA-568B.2/568B.2-1 Category 6 specifications
  • 568A and 568B wiring universal wiring color code
  • Termination: 110-type Punchdown
  • Contacts : Phosphor bronze, 50u" gold plated over nickel plating
  • Operating temperature : -40 to +70 dgree Celsius
  • UL approved
  • Compatible with Cat 3, 4, 5 & 5e
  • 5 year warranty

Specifications:

 12 port: Vertical Mount Mounting Bracket & Screws Included

24 Port: Rack Mount Patch Panel 1U (1.75") x  19"

48 port: Rack Mount Patch Panel 2U (3.50") x  19"

12 port Weight : 0.85 LBS
24 port Weight : 1.55 LBS
48 port Weight : 2.65 LBS

Specifications

Number of Ports 12 or 24 or 48
