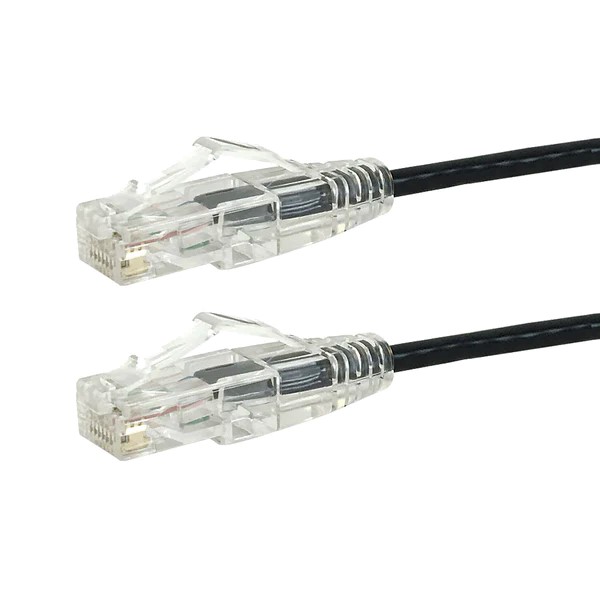

CAT6 Ultra Thin Patch Cables

Internal Reference :
Description :

  • color
  • Length
    • 6"
    • 1'
    • 2'
    • 3'
    • 4'
    • 5'
    • 6'
    • 7'
    • 8'
    • 10'
    • 12'
    • 15'
    • 20'
    • 25'
    • 35'

This combination does not exist.

3.30 $ 3.3000000000000003 CAD 3.30 $

0.00 $

Availability: In Stock
Quantity:



Unshielded Ultra-Thin Patch Cable

Cat 6 performance in high density environment

This Cat6 Ethernet cable consists of a RJ45 male on one end and a RJ45 male on the other.

It is typically used for Ethernet network connections such as patch panels, switches, computers and routers. It's ultra-thin cable design works perfectly in high density server room applications.

  • All cables are 100% tested to pass a Fluke 'Cat6 Patch Cable Test' and come with a printed test report.
  • The Ultra-Thin Cat6 28 AWG Unshielded (UTP) Snagless Patch Cable is the perfect solution for high-density spaces such as telecommunication rooms and data centers.
  • With cable diameter of only 3.6mm, the slim Cat6 cable is much thinner and lighter than the standard Cat6 cable, which makes it easier to install and take less space than the standard 24 AWG Cat6 cable.
  • The slim Cat6 cable also has a smaller bend, which allows it to be easily routed through cable management panels.
  • The slim Cat 6 cable contains four twisted copper wire pairs and is made of 28AWG conductors with a PVC jacket and snagless molded boot.
  • The snagless design protects the locking tabs on the RJ45 connectors from being damaged or snapped off during installation.

    • Features

  • 100%pass patch cord testing
  • 28AWG 4-pair stranded bare copper wires
  • RJ45 plug with 50 micron gold plating contacts
  • RoHS, Reach and Conflict Materials compliant
  • Cable diameter 3.6mm, optimize the space in high-density environments
Color Black
Connector Plating Gold Plated 50 Micron
Cable Diameter 3.6mm
Wire Gauge 28AWG Stranded
Shielding UTP (Unshielded)
Pairs 4
Fire Rating CMR (FT4 Riser Rated)
Strain Relief Assembled, Clear Boot
Jacket Type PVC
Connector A RJ45 Long Body Male
Connector B RJ45 Long Body Male
Fluke Cat6 Patch Cable Test Yes
cUL Yes - Cable
ISO/IEC 11801 Yes
RoHS Yes
Reach Yes
Conflict Materials Yes
Package Quantity 1
Product Weight 0.04 lbs [0.01kg]/0.05 lbs [0.02kg]/0.06 lbs [0.02kg]/0.07 lbs [0.03kg]/0.08 lbs [0.03kg]/0.09 lbs [0.04kg]/0.10 lbs [0.04kg]/0.11 lbs [0.04kg]/0.12 lbs [0.05kg]/0.14 lbs [0.06kg]/0.16 lbs [0.07kg]/0.20 lbs [0.09kg]/0.24 lbs [0.1kg]/0.30 lbs [0.1kg]/0.44 lbs [0.2kg]
Warranty Limited Lifetime


Specifications

color Black or Blue or Gray or Green or Orange or Purple or Red or White or Yellow
Length 6" or 1' or 2' or 3' or 4' or 5' or 6' or 7' or 8' or 10' or 12' or 15' or 20' or 25' or 35'
