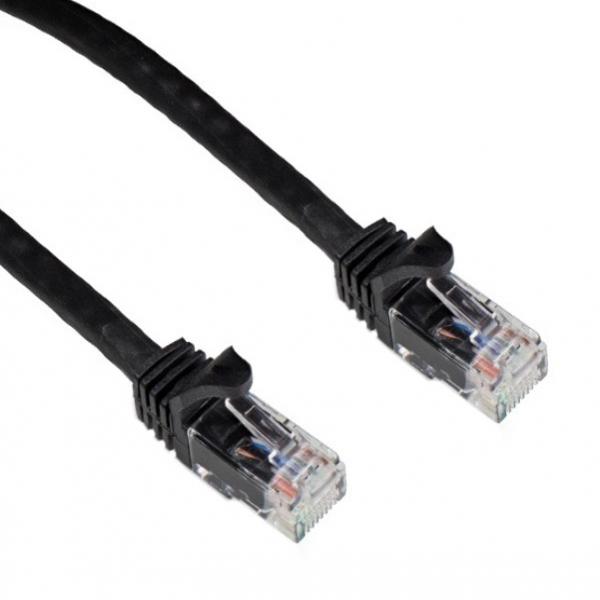

CAT6A Stranded 24AWG 10GB Molded Patch Cable

Internal Reference :
Description :

  • color
  • Length
    • 6"
    • 8"
    • 1'
    • 2'
    • 3'
    • 5'
    • 7'
    • 10'
    • 14'
    • 15'
    • 20'
    • 25'
    • 35'
    • 50'
    • 75'
    • 100'
    • 150'
    • 200'
    • Custom Order

This combination does not exist.

4.90 $ 4.9 CAD 4.90 $

0.00 $

Availability: In Stock
Quantity:



Category 6a - Augmented Category 6

10G Cat 6a cabling provides transmission performance that excceeds the industry standard Cat6 parameters and supports the operation of 10GBASE-T over 100 meters.

10G Cat6A solutions are qualified for frequencies up to 500MHz.

  • Category 6a (Augmented Category 6) operates at frequencies up to 500 MHz - twice that of Cat 6.
  • Supports 10 Gbit/s applications (especially 10GBaseT) up to a maximum distance of 100 meters.
  • Cat 6a is the evolution of UTP cabling to support 10G and more bandwidth when compared to Cat 6.

Application

  • 10GBASE-T Ethernet
  • 1000BASE-TX Fast Ethernet
  • 1000BASE-T Gigabit Ethernet
  • 100BASE-TX Fast Ethernet
  • 10BASE-T Ethernet
  • 155/622 Mbps ATM
  • 4/16 Mbps Token Ring
  • 100VG-AnyLAN
  • 100Mbps TP-PMD

Features

  • Performance conforms to proposed Cat 6A channel requirement of TIA/EIA-568-B-2-10 class EA ISO/IEC 11801, CENELEC EN 50173 and IEEE802.3an
  • Meets all Alien crosstalk reduction specifications - not affected by wire in adjacent cable
  • 10Gbit/s transmission to 100m
  • Performance Tested - Tested to exceed 500MHz (up to 550Mhz)
  • CAT6a Copper Patch Cables feature Molded Connectors with Snagless Guards - Make installations effortless and protect connector tabs from damage
  • CAT6a Copper Patch Cables feature Gold-Plated Connector Contacts - Deliver maximum conductivity for high-speed data transmissions
  • Conductors AWG 24
  • Jacket FT4
  • Backward compatible with CAT5e and CAT6

Product appearance and specifications are subject to change without notice.

Specifications

color Black or Blue or Gray or Green or Orange or Purple or Red or White or Yellow or Aqua
Length 6" or 8" or 1' or 2' or 3' or 5' or 7' or 10' or 14' or 15' or 20' or 25' or 35' or 50' or 75' or 100' or 150' or 200' or Custom Order
