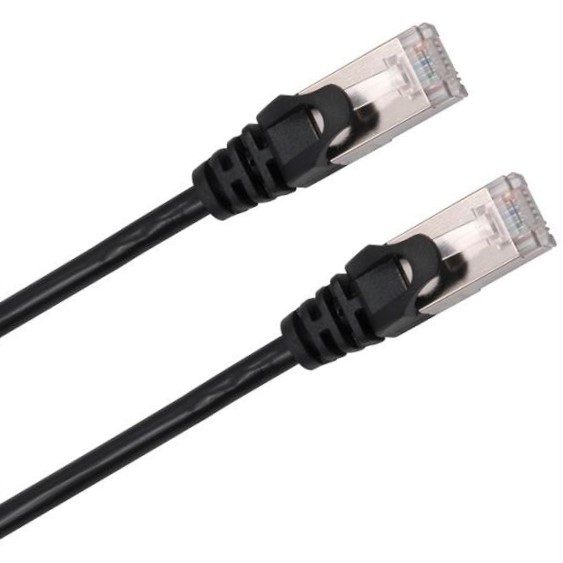

CAT8 (40 GIG) Ultra Thin Shielded FTP Patch Cables

Internal Reference :
Description :

  • color
  • Length
    • 6"
    • 1'
    • 2'
    • 3'
    • 4'
    • 5'
    • 6'
    • 7'
    • 10'
    • 15'

This combination does not exist.

5.50 $ 5.5 CAD 5.50 $

0.00 $

Availability: In Stock
Quantity:



Cat8 FFTP 40G Ultra-Thin Molded Patch Cable - 30AWG - Riser CMR


This Cat8 Ethernet cable consists of a RJ45 male on one end and a RJ45 male on the other. It is typically used for Ethernet network connections such as patch panels, switches, computers and routers. It's ultra-thin cable design works perfectly in high density server room applications.

100% Pure Copper

This cables is manufactured using high quality pure bare copper to ensure optimal performance and longest lifetime.

50 Micron Gold Plated Connectors

This non-corrosive, thickest available gold plating delivers optimum conductivity and maintains a stable signal connection with little risk of getting damaged over time.

Performance in High Density Applications.

This ultra slim cable is 60% thinner than the regular Cat8 cable which makes it the perfect solution for high density server rooms and data centers. It is also light weight, flexible and can be easily routed.

Fluke CAT8 Channel Test

Our cables are 100% tested to pass a fluke CAT8 channel test, and come with a printed test report.


Specifications

Physical Characteristics
Connector Plating Gold Plated 50 Micron
Cable Diameter 4.5mm
Wire Gauge 30AWG Stranded
Shielding FFTP (Overall Foil and Individually Foil Shielding Pairs)
Pairs 4
Fire Rating CMR (FT4 Riser Rated)
Strain Relief Molded Tab Style Strain Relief
Jacket Type PVC
Temperature Rating
-20oC to +75oC
Connectors
Connector A RJ45 Long Body Male
Connector B RJ45 Long Body Male
Performance
Fluke CAT8 Channel Test Yes
Frequency 40Gb
Color Code 568A/568B Compatible
Approvals
c(UL)us Yes - Cable
ISO/IEC 11801 Yes
Environmental
RoHS Yes
Reach Yes
Conflict Materials Yes
Package Information
Package Quantity 1
Warranty Information
Warranty Limited Lifetime
Cable Weights
6 inch 1ft 2ft 3ft 4ft 5ft 6ft 7ft 10ft 15ft
0.02 0.02 lbs 0.03 lbs 0.07 lbs 0.04 lbs 0.04 lbs 0.05 lbs 0.06 lbs 0.08 lbs 0.11 lbs


Specifications

color Black or Blue or White
Length 6" or 1' or 2' or 3' or 4' or 5' or 6' or 7' or 10' or 15'
