UTP/STP Cable Tester & Wire Tracer for RJ45 Cables

Internal Reference :
Description :
#CABLEK:

CT-UTP/STP-B

    This combination does not exist.

    78.90 $ 78.9 CAD 78.90 $

    78.90 $

    Availability: In Stock
    Quantity:

    Internal Reference: CT-UTP/STP-B

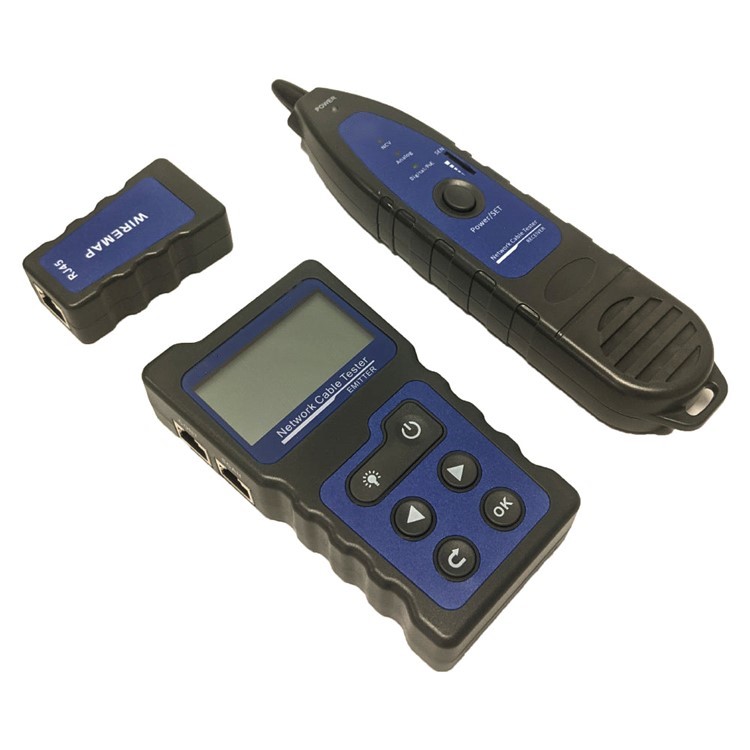

    UTP/STP Network Cable Tester & Wire Tracer

    This network cable tester tests the pin assignments accurately of unshielded and shielded RJ45 cables. It allows you to determine if the cable is pinned correctly or if it is mis-wired, shorted or has open circuits. It also measures length, does tone and probe, measures PoE and port flashing. The emitter is powered using 3x AAA batteries and the receiver is powered using 1x 9V battery (batteries not included).

    Features

    • Test open, short, cross and breaks for UTP/STP cables
    • Measure length of LAN cables
    • Scan analog/digital/PoE mode to locate LAN cables
    • Works with standard or non-standard PoE switches
    • Identify AT or AF standard PSE types
    • Network port location on switches and routers
    Physical Characteristics
    Color Grey/Blue
    Dimensions
    (L x W x D)    		 Emitter: 130x70x28mm
    Receiver: 130x43x27mm
    Remote: 65x37x23mm
    Test Measurements Test open, short, cross and breaks for UTP/STP (CAT5E, CAT6, CAT6A) cables
    Wire Mapping Yes
    Max Range (Wiremap & Scan) 600m
    Cable Length Test Range 2.5m ~ 200m
    Length Accuracy +/- 1.6m
    Cable Breakage Locator Yes
    Scan Max Signal Voltage 9 +/- 1Vp-p
    Scan Frequency 130KHz
    PoE Test Range DC 5~60V
    PoE Voltage Display Yes
    PSE Type Standard IEEE 802.3af/at
    Voltage Protection DC48V 5mA
    LCD Display 128x64 Dot-matrix with backlight
    Sensitivity Adjustable Yes
    AC Voltage Detection Yes
    Battery Types Emitter: 3x AAA batteries (Not Included)
    Receiver: 1x 9V battery (Not Included)
    Max Working Current Emitter: <150mA
    Receiver: <100mA
    Wire Mapping Port (Remote) RJ45
    Packaging Information
    Packaging Quantity 1
    Product Weight 0.76 lbs

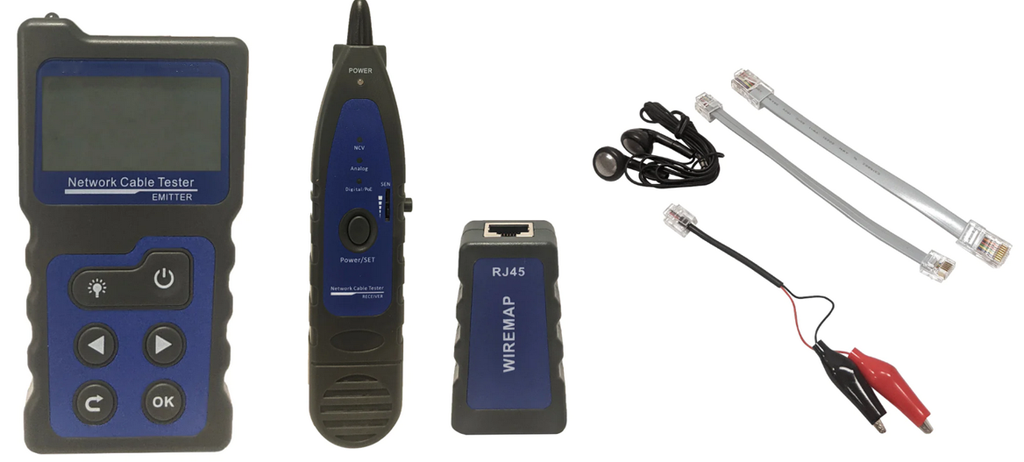

    Contents
    Included in Package 1 - Emitter
    1 - Receiver
    1 - Remote
    1 - Earphone
    1 - Cable Adapters (1 set)
    1 - Carry Bag
    1 - Quality Certificate
    1 - User Manual
