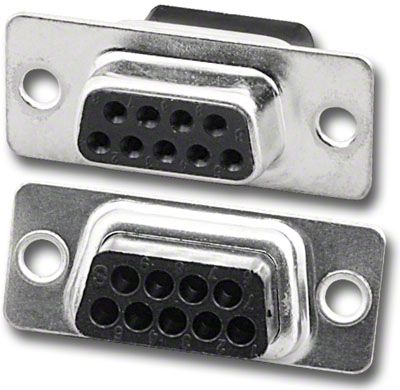

D SUB Crimp Type Connectors
Internal Reference :Description :
D-SUB Standard Density (9 pin, 15 pin, 25 pin, 37 pin, 50 pin)
Features
- Crimp d-subs available in 5 industry sizes/positions
- Standard Density (9 pin, 15 pin, 25 pin, 37 pin, 50 pin)
- Standard Density (9 pin, 15 pin, 25 pin, 37 pin, 50 pin)
- Low cost commercial version of military standard
- Allows for easy loading of only the positions required
- Crimp contacts (sold separately)
- Nylon insulator has a minimum contact retention of 10 lbs
- Contact current rating: 5 amps
Materials
- Crimp D-Sub Shell: Nickel Or Tin Plated Steel
- Insulator: Glass-filled thermoplastic, UL94 V-0 (230°C process temp)
Notes
- Crimp Contacts must be sold separately
- Male nickel or tin plated shells have indents to provide grounding and additional retention
Specifications
| Connector | DB09 or DB15 or DB25 or DB37 or DB50 |
| Gender | Female or Male |
