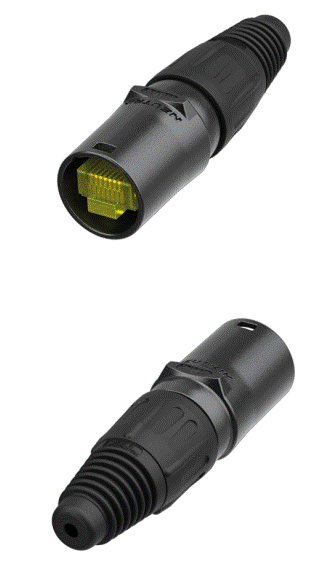

ETHERCON RJ45 MALE HOUSING

The Neutrik EtherCon® series of connectors delivers a rugged and professional solution for the interfacing of Category RJ45 connector formats.   The outer shell and integrated chuck provide a locking mechanism, strain relief, and a protective outer shell. The slip and clamp design of the components allow the EtherCon® to be assembled onto preterminated RJ45 cable assemblies.

Features & Benefits

• Durable Construction
• RJ45 system for harsh and demanding environment
• Compatible with Preterminated RJ45 Cables
• Rugged diecast shell and unique chuck type strain relief
• Cable and Panel Mount Versions
• Integrated Chuck Strain Relief
• Locking Mechanism
• Suitable for cable diameters from 3.5 to 8mm
• Accessories include color coded boots in 9 standard colors
• RJ45 Sold Separately

RJ45 cable carrier consisting of black chromium shell, fixing disk, chuck, bush and boot. Packed with two cable protection elements for cable diameter either up to 5 or up to 8 mm. For preassembled RJ45 plugs. Standard bushing color is black, 9 different coding colors available.

Electrical Specifications:

• Specs depend on type of RJ45 plugs used.
• Cable O.D. range: max. 8 mm / 0.315"

Mechanical Specifications:

• Life time: > 1000 mating cycles

Material Specifications:

• Housing: ZnAl4Cu1, gal Ni
• Strain relief clamp: POM
• Bushing: PA 6 15% GR
• Boot: PA 6
• Temperature range: -30°C to +80°C
• Flammability: UL94-V0

Optional Color Coded Boots

 Color coding:
0 - Black
1 - Brown
2 - Red
3 - Orange
4 - Yellow
5 - Green
6 - Blue
7 - Violet
8 - Grey
9 - White   manufacturer # NE8MC-1-B
