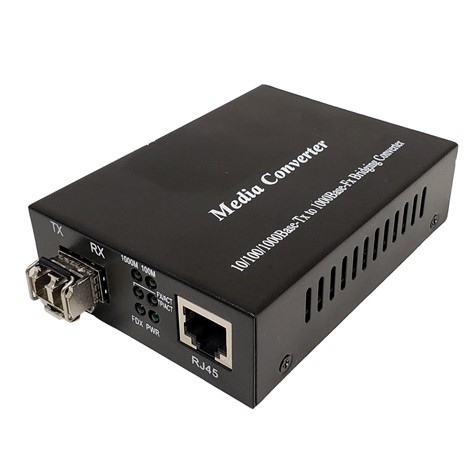

Multimode Media Converter 10/100/1000, 550m LC (850nm)
Internal Reference :Description :
#CABLEK:
FI-TFC-1000MLC
Internal Reference:
FI-TFC-1000MLC
This multimode fiber optic media converter can extend a 10/100/1000 Mbps Ethernet connection up to 550m over a multimode LC fiber optic cable. The converter can be used as a standalone unit or in pairs.
Features
- Supporting inter-conversion between10/100/1000Base-TX and 1000Base-SX
- Supporting full-duplex and half-duplex and its auto-sensed
- Supporting automatic cross connection of twisted pair interfaces, facilitating system commissioning and installation
- Supporting the transmission of extra-long VLAN packets
- Supporting Quality of Service (QoS) and ensuring the transmission of VoIP packets;
- Supporting STP to form a redundant network
| Physical Characteristics | |
|---|---|
| Color | Black |
| Dimensions | 94mm x 70mm x 26mm (L x W x H) |
| Housing | Metal |
| Operating Temperature | -10℃ ~ 55℃ |
| Relative Humidity | 5% to 90% (non-condensation) |
| Standards |
Standard: IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-SX/LX Gigabit thernet,IEEE802.1qVLAN, IEEE802.1p QoS IEEE802.1d Spanning Tree |
| Power | |
| Power Supply | AC220 0.5A/DC-48 (Built-in) |
| Power Consumption | 5W |
| Connectors | |
| Fiber Connector | LC |
| Ethernet Connector | RJ45 STP/UTP |
| Performance | |
| Media Supported | 10/100/1000Base-T and1000Base-SX/LX |
| Referenced Transmission Distance | Dual-fiber multi-mode: 220m (62.5/125Î1/4m)/550m (50/125Î1/4m) |
| Data Forward Rate | 10Mbps, 100Mbps, 1000Mbps |
| LED |
PWR (power supply) FX LINK (optical link action) TP LINK1000 (twisted pair link1000M) TP LINK100 (twisted pair link 100M) TP ACT (twisted pair packet forwarding) |
| Certifications | |
| CE | Yes |
| FCC | Yes |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.85 lbs [0.03kg] |
| Warranty Information | |
| Warranty | 3 Year |
