Singlemode Media Converter 10/100/1000, 40km SC (1310nm)

Internal Reference :
Description :
#CABLEK:

FIMC-SMSC40KM

    This combination does not exist.

    66.90 $ 66.9 CAD 66.90 $

    66.90 $

    Availability: In Stock
    Quantity:

    Internal Reference: FIMC-SMSC40KM

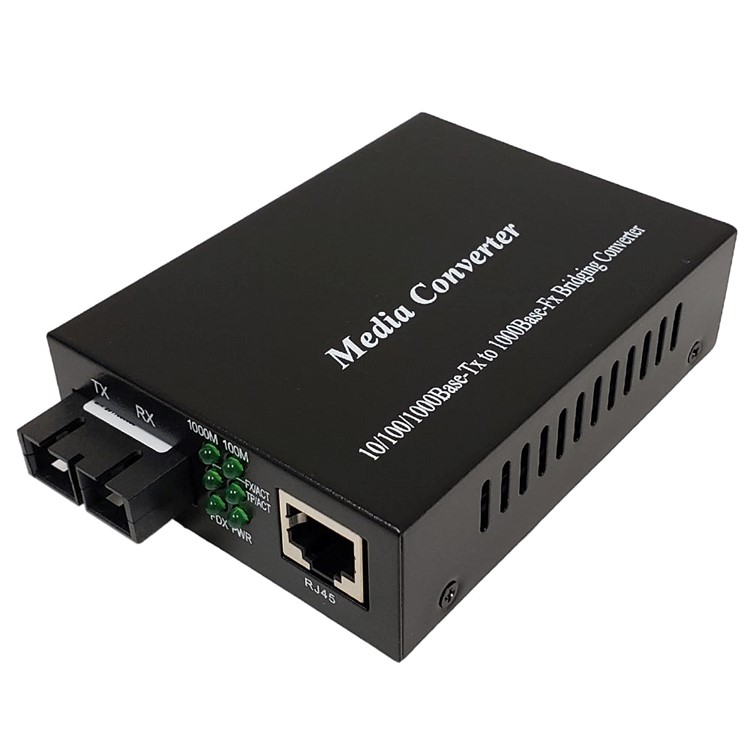

    Singlemode Media Converter 10/100/1000, 40km SC (1310nm)

    This singlemode fiber optic media converter can extend a 10/100/1000 Mbps Ethernet connection up to 40km over a singlemode SC fiber optic cable. The converter can be used as a standalone unit or in pairs. It can also be mounted into a 19" media converter chassis.

    Physical Characteristics
    Color Black
    Dimensions 98mm x 70mm x 26mm (L x W x H)
    Housing Metal
    Operating Temperature 0℃ ~ 60℃
    Relative Humidity 5% to 90% (non-condensation)
    Standards IEEE802.3 10Base-T
    IEEE802.3u 100Base-TX/FX
    IEEE802.3u 1000Base-TX/FX
    Power
    Power Outside: DC 5V 2A
    Built-in: 110-265V AC 48VDC
    Connectors
    Fiber Connector SC
    Ethernet Connector RJ45 UTP
    Performance
    Media Supported Standard Protocol: IEEE802.3 10Base-T Standard
    IEEE802.3u 100Base-TX/FX Standard

    Singlemode Fiber (8.3/125um, 8.7/125um or 10/125um)
    Operation Mode Full Duplex Mode or Half Duplex Mode
    Optical Wavelength 1310nm
    Optical Power 0 ~ -5dbm
    Sensitivity <- 24dbm
    Referenced Transmission Distance Dual-Fiber Singlemode - 40km
    Data Forward Rate 10Mbps, 100Mbps, 1000Mbps
    Features In Conformity to IEEE802.3 10 Base-T Standard
    In Conformity to IEEE802.3u 100Base-TX/FX Standard
    Max 2M Buffer Memory Built in Chip
    Back Pressure Flow Control for Full Duplex IEEE802.3 X and Half Duplex
    Automatic Identification of MDI/MDI-X Cross Line
    High Performance 1.4Gbps Memory Bandwidth
    In Conformity to Safety Code of FCC and 15 CLASS A and CE MARK
    LED Status Description
    LED Function Status Description
    PWR Power LED ON Power is ON
    OFF Power is OFF
    FX Fiber Single Detect LED ON Laser is Receiving
    OFF No Laser Input
    LINK/ACT FX Fiber Port Link/Action Status LED ON Fiber Port is Linked
    BLINK Fiber Port is Active
    OFF Fiber Port is Not Linked
    1000M UTP Port Speed LED ON 1000M Speed
    OFF 100M Speed
    LINK/ACT TX UTP Port Link/Action Status LED ON UTP Port is Linked
    BLINK UTP Port is Active
    OFF UTP Port is Not Linked
    FDX/COL UTP Port Duplex LED ON Full Duplex
    OFF Half Duplex
    Certifications
    CE Yes
    FCC Yes
    RoHS Yes
    Packaging Information
    Package Quantity 1
    Product Weight 0.85 lbs [0.03kg]
    Warranty Information
    Warranty 1 Year
