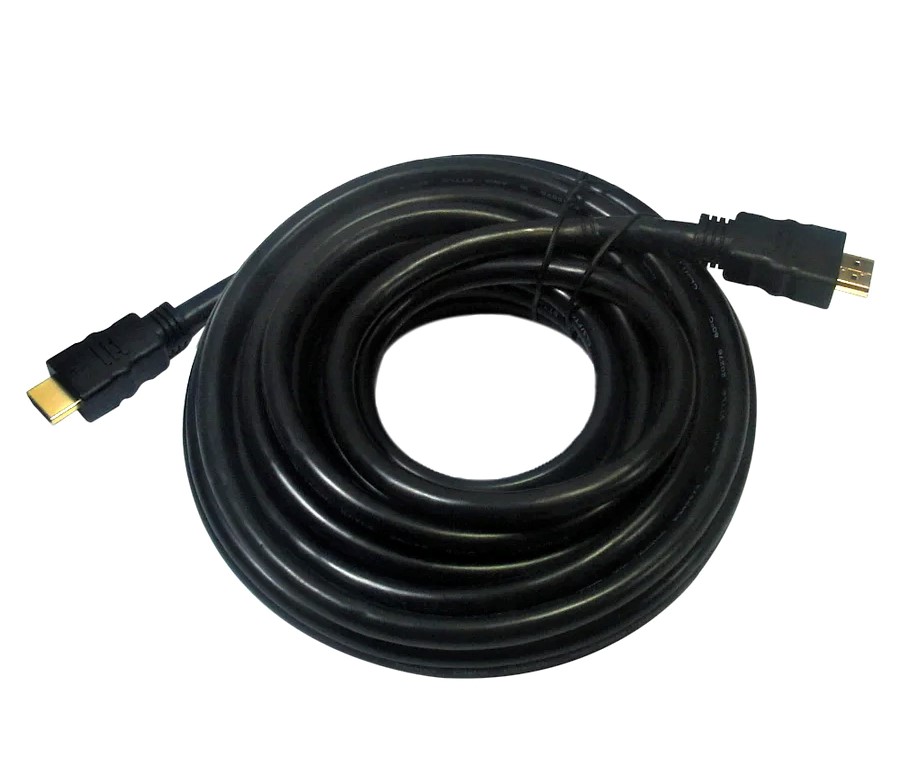

HDMI High Speed with Ethernet Premium Cable
Internal Reference :Description :
This High-Speed HDMI® cable consists of a HDMI male connector on both ends. It is typically used to connect a HDMI source such as Blu-Ray players and PC's to a HDTV or monitor and supports a maximum ultra HD resolutions up to 4k x 2k.
| Physical Characteristics | |||
|---|---|---|---|
| Color | Black | ||
| Connector Plating | Gold | ||
| Cable Length | 1.5ft ~ 5ft | 20ft ~ 25ft | 30ft ~ 50ft |
| Cable Diameter | 7.3 mm | 8.5 mm | 10.0 mm |
| Wire Gauge | 28 AWG | 26 AWG | 24 AWG |
| Shielding | 50% Braid + 100% Aluminum-Mylar Foil | ||
| Jacket Fire Rating | CL3/FT4 | ||
| Jacket Material | PVC | ||
| Strain Relief | Molded PVC | ||
| Connectors | |||
| Connector A | HDMI A (19 pin) Male | ||
| Connector B | HDMI A (19 pin) Male | ||
| Performance | |||
| 1.5ft ~ 10ft | 12ft ~ 40ft | 45ft ~ 50ft | |
| Resolution | HD 4k x 2k @ 60Hz | HD 4k x 2k @ 60Hz | HD 4k x 2k @ 30Hz |
| Built in Ethernet Channel | Yes | Yes | Yes |
| 3D Compatible | Yes | Yes | Yes |
| Bandwidth | 18Gbps | 10.2Gbps | 10.2Gbps |
| Audio Return Channel | Yes | Yes | Yes |
| HDMI Version | HDMI 2.0, 2.0a, 2.0b | HDMI 1.4 | HDMI 1.4 |
| Approvals | |||
| c(UL)us | Approved Cable | ||
| Environmental | |||
| RoHS | Yes | ||
| Reach | Yes | ||
| Conflict Minerals | Yes | ||
| Packaging Information | |||
| Package Quantity | 1 Cable | ||
| Warranty Information | |||
| Warranty | Limited Lifetime |
| 1.5ft | 3ft | 6ft | 8ft | 10ft | 12ft | 15ft | 20ft | 25ft | 30ft | 35ft | 40ft | 45ft | 50ft |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.10 lbs | 0.16 lbs | 0.25 lbs | 0.34 lbs | 0.40 lbs | 0.48 lbs | 0.60 lbs | 0.94 lbs | 1.22 lbs | 2.20 lbs | 2.40 lbs | 2.85 lbs | 3.33 lbs | 3.80 lbs |
Specifications
| Length | 10' or 25' or 35' or 50' |
