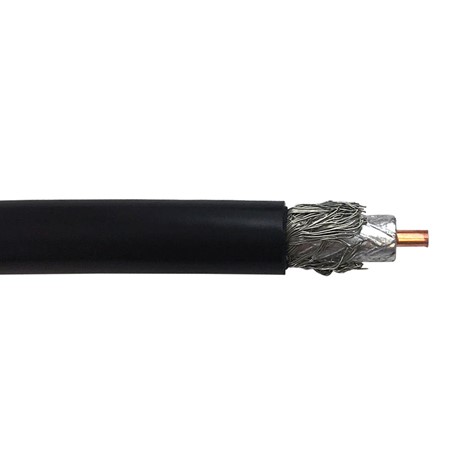

LLR-400 50 Ohm Coax Bulk Cable
ANTENNA 400 Series LOW-LOSS 50 OHM RF Transmission Coaxial Cable
Utilized in numerous applications where loss and performance supersede traditional RG58, RG8, RG213, RG223, and RG214 coaxial cables
Applications: Mobile phone, Wi-Fi, Broadband, Satellite Antennas, Terrestrial Microwave, Medical, Military, Traffic Control, and Land Mobile Radio
Construction Specifications:
|
Material |
Diameter | |
| Inner conductor | Solid Copper | 0.108" Nom. |
| Dielectric | Foamed Polyethylene Bonded Aluminum Foil + Tinned | 0.285" Nom. |
| Outer Conductor | Copper Braid | 0.320" Nom. |
| Jacket | Black Polyethylene | 0.405" Nom. |
Electrical Properties:
| Capacitance |
23.9 pF/ft |
| Impedance |
50 Ohms |
| Velocity |
85% |
| Inner Conductor DC Resistance |
1.39 (Ohms/1000ft) |
| Outer Conductor DC Resistance |
1.65 (Ohms/1000ft) |
| Shielding Effectiveness |
90 dB |
| Jacket Spark |
8,000 VAC |
| Cutoff Frequency |
16.2 GHz |
| Peak Power |
16.0 kW |
| Voltage Withstand |
2,500 VDC |
Mechanical & Envionmental Properties:
| Minimum Bend Radius |
1.00" |
| Storage Temperature | -94°F to 185°F |
| Installation Temperature | -40°F to 185°F |
| Operating Temperature | -40°F to 185°F |
Attenuation & Average Power (68°F):
| Frequency (MHz) | Typical Attenuation (dB/100ft) | Average Power (kW) |
|
30 |
0.70 |
3.30 |
|
50 |
0.90 |
2.60 |
|
150 |
1.50 |
1.50 |
|
220 |
1.90 |
1.20 |
|
450 |
2.70 |
0.83 |
|
900 |
3.90 |
0.58 |
| 1500 |
5.10 |
0.44 |
|
1800 |
5.70 |
0.40 |
|
2000 |
6.00 |
0.37 |
|
2500 |
6.80 |
0.33 |
|
5800 |
10.80 |
0.21 |
Specifications
| Length | 100' or 250' or 500' or 1000' |
