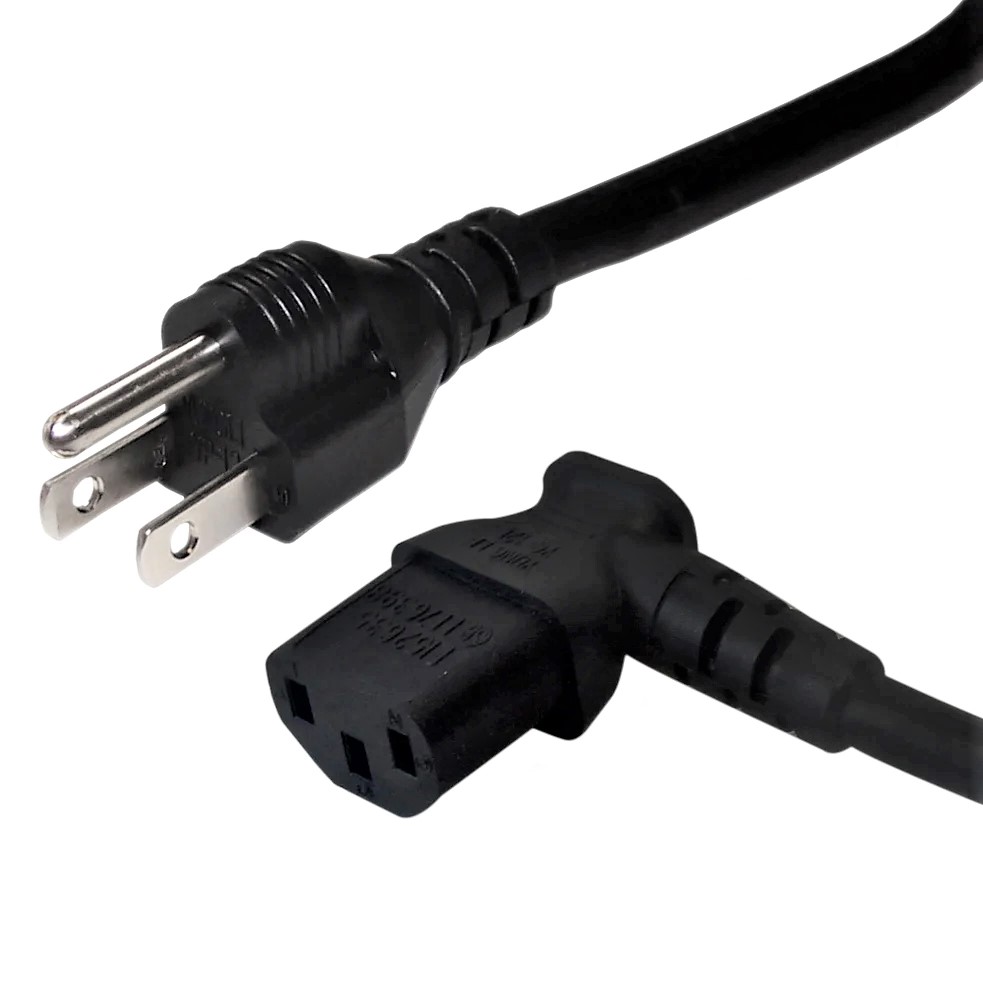

NEMA 5-15P to IEC C13 Right Angle 18AWG
Internal Reference :Description :
This power cord consists of a 5-15P male on one end and a C13 right angle female on the other end. It is typically used to connect a server or UPS to a PDU or a wall outlet. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. The connectors premium quality ensures a snug fit with receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.
Physical Characteristics | |
---|---|
Color | Black |
Number of Conductors | 3 Conductor |
Wire Gauge | 18 AWG |
Jacket | Heavy Duty SJT |
Jacket Material | 100% Virgin PVC - Polyvinyl Chloride |
Jacket Fire Rating | FT2 VW-1 |
Strain Relief | Molded 100% Virgin PVC |
Temperature Rating | -20 deg C to 105 deg C |
Connector(s) | |
Connector A | IEC 60320 C13 Right Angle |
Connector B | NEMA 5-15P |
Performance | |
Power Rating | 10 Amp / 125 Volt |
Approvals | |
C13 | c(UL)us, CSA |
5-15P | c(UL)us, CSA |
Cable | c(UL)us, CSA |
ISO | ISO 9001:2000, ISO 14000 |
Environmental | |
RoHS | Yes |
Reach | Yes |
Conflict Minerals | Yes |
Packaging Information | |
Package Quantity | 1 |
Warranty Information | |
Warranty | Limited Lifetime |
3ft | 6ft | 10ft |
---|---|---|
0.35 lbs | 0.47 lbs | 0.82 lbs |
Specifications
Length | 3' or 6' or 10' |
