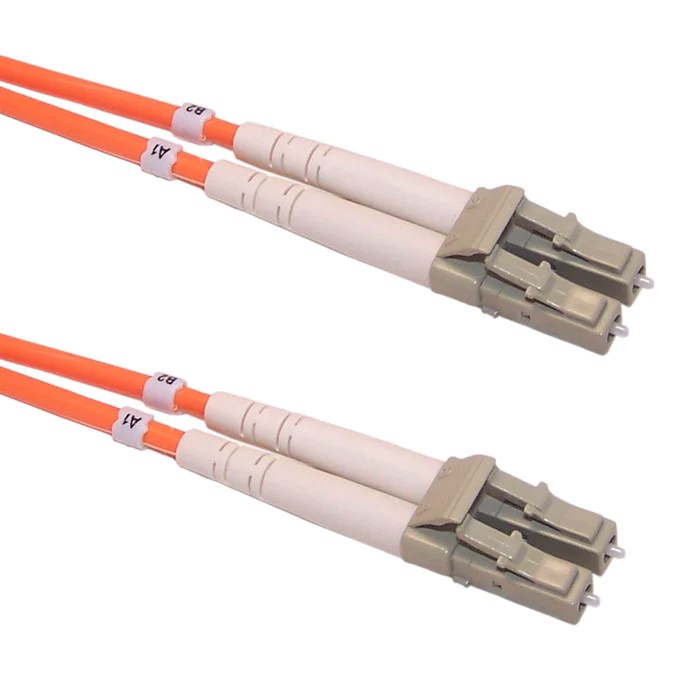

OM2 50µ Multimode Duplex OFNR Jacket
50/125 Multimode Duplex Fiber Cable with OFNR Jacket
Cablek's multimode duplex patch cord fiber optic cables are built with premium quality material for fast data transmission. The cable assemblies are composed of OFNR riser rated jackets with connectors that allow easy connection and removal from transmitting and receiving equipment. Connector options include variations of the following: FC, SC, ST, LC, MU, and MT-RJ.
All cables are fully tested to meet or surpass industry standards and to ensure high quality performance, reliability and durability.
Applications – Telecommunications – CATV – LAN & WAN – Broadband – FTTP |
Features and Benefits – Meet IEC, JIS, Bellcore GR-326 performance – Guaranteed quality; 100% tested & inspected – Custom assemblies available upon request – OEM available upon request – RoHS compliant |
Applications include :
Networking
- patch panels within communication closets
- jumper assemblies
- closet to wall outlets
- wall outlets to transceivers
- dropped ceiling installations, etc...
SAN / Fiber channel (50 microns)
The major benefit of 50 micron (µm) diameter fiber is its high bandwidth. Standard quality 50 µm fiber (500 / 500Mhz / km) has 3 times the bandwidth of standard 62.5 µm (160 / 500Mhz / km) at the 850 nm wavelength. This greater bandwidth allows 50 µm fiber to support 1 and 10Giga bits/s data rates, necessary to future proof your cabling for many years to come. Conversely standard 62.5 µm fibers cannot support these high data rates over desired distances.
Warranty: Lifetime
Standard 50 µm fiber Specifications :
Attenuation 850 nm |
3.0 dB / km |
Attenuation @ 1300 nm | 1.0 dB / km |
Maximum tensile load | 480 N / cm |
Loaded min. bend radius | 5 cm |
Unloaded min. bend radius | 3 cm |
Impact resistance | 750 N / cm |
Crush resistance | 1000 cycles |
Flex resistance | 7500 cycles |
Min. bandwidth @ 850 nm | 500 KHz / km |
Min. bandwidth @ 1300 nm | 500 KHz / km |
Operating temperature | -20°C > 70°C |
Specifications
Length | 1 m or 2 m or 3 m or 5 m or 6 m or 7 m or 10 m or 20 m or 15 m or 25 m or 30 m or 40 m or 50 m or 60 m or 70 m |
Connector | LC/LC or LC/SC or LC/ST or MTRJ/LC or MTRJ/MTRJ or MTRJ/SC or MTRJ/ST or SC/SC or ST/SC or ST/ST |
