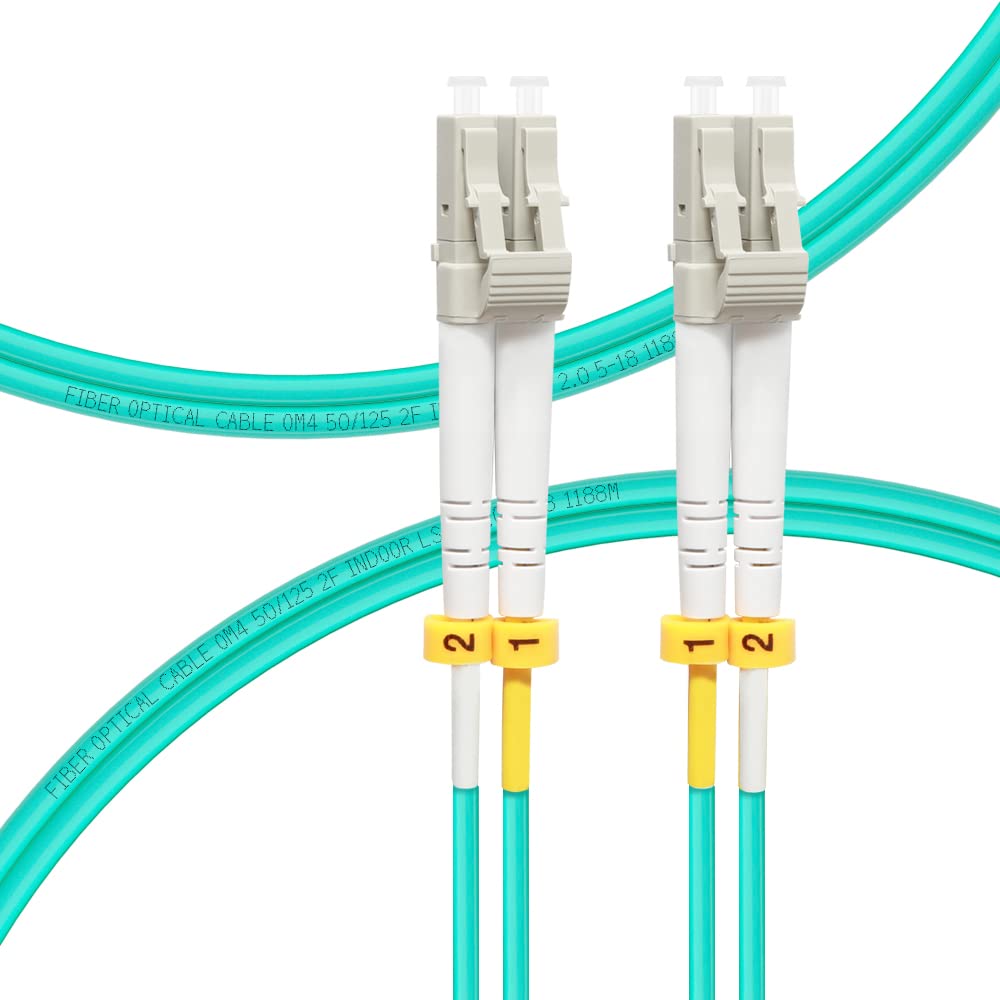

OM4 50µ 10 GIG Fiber Optic Aqua Cable Multimode Duplex OFNR Jacket LC to LC
OM4 50µ 10 GIG Fiber Optic Aqua Cable Multimode Duplex OFNR Jacket LC to LC
This 50 micron (OM4) laser optimized fiber optic cable is made with Corning glass fiber. It has 2mm jacket and rated low smoke zero halogen (LSZH) & riser (OFNR). They are tested to provide the optimum data transmission and network stability. They are used for connections to data center, CATV, fiber test equipment, LAN, telecommunication networks, FTTx, communication rooms and fiber optic communication system.
Specifications
| Physical Characteristics | |
|---|---|
| Color | Aqua |
| Cable Diameter | 2mm |
| Fiber Size | 50/125 micron - Laser Optimized |
| Fiber Type | Multimode |
| Glass Manufacturer | Corning Glass |
| Connector Ferrules | Ceramic |
| Fiber Classification | OM4 |
| Jacket Rating | Low Smoke Zero Halogen (LSZH) & Riser (OFNR) |
| Operating Temperature | -10°C ~ +70°C |
| Connector(s) | |
| Connector A | LC Duplex Male |
| Connector B | LC Duplex Male |
| Performance | |
| Insertion Loss | <0.3db @ 1300nm |
| Speed | 10Gbps, 40Gbps, 100Gbps and Higher |
| Interferometer Tested | 100% Tested |
| Environmental | |
| RoHS | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Warranty | Limited Lifetime |
Specifications
| Length | 8" or 0.5 m or 1 m or 1.5 m or 2 m or 2.5 m or 3 m or 4 m or 5 m or 6 m or 7 m or 8 m or 10 m or 12 m or 20 m or 15 m or 17 m or 25 m or 30 m or 40 m or 50 m or 60 m or 75 m or 100 m |
| Connector | LC/LC |
