C20 to Open Ended ROJ Power Cable - SJT
Internal Reference :Description :
#CABLEK:
PCC-C20O-12-8
Internal Reference:
PCC-C20O-12-8
C20 to Open Ended ROJ Power Cable - SJT

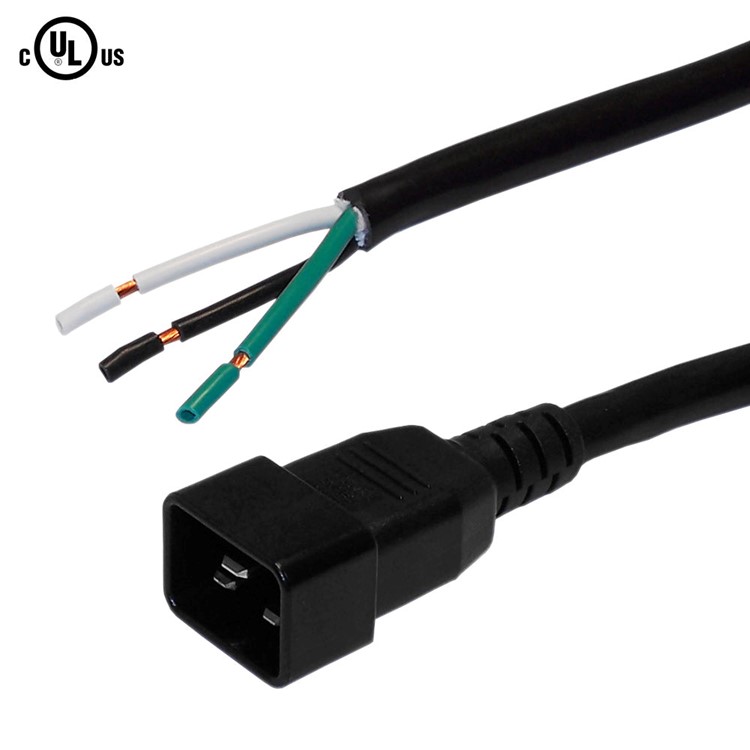

This power cord consists of a C20 male on one end and is un-terminated on the other with the outer jacket removed. These cords are typically hardwired directly to equipment. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and high quality molds. The connectors premium quality to ensure a snug fit into PDU receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.
Physical Characteristics | |
---|---|
Cable Length | 8 foot [2.4m] |
Color | Black |
Number of Conductors | 3 Conductor |
Wire Gauge | 12 AWG |
Jacket | Heavy Duty SJT |
Jacket Material | 100% Virgin PVC - Polyvinyl Chloride |
Jacket Fire Rating | FT2 VW-1 |
Strain Relief | Molded 100% Virgin PVC |
Temperature Rating | -20℃ to 105℃ |
Connector(s) | |
Connector A | IEC 60320 C20 |
Connector B | Un-terminated - Outer Jacket Removed |
Performance | |
Power Rating | 20 Amp / 250 Volt |
Approvals | |
C20 | c(UL)us |
Cable | c(UL)us, CSA |
ISO | ISO 9001:2000, ISO 14000 |
Environmental | |
RoHS | Yes |
Reach | Yes |
Conflict Minerals | Yes |
Specifications
Length | 8' |
