CAT6+ RJ45 Ivory Module Leviton

Internal Reference :
Description :
#CABLEK:

PLV-GM8-12

    This combination does not exist.

    16.25 $ 16.25 CAD 16.25 $

    16.25 $

    Availability: In Stock
    Quantity:

    Internal Reference: PLV-GM8-12

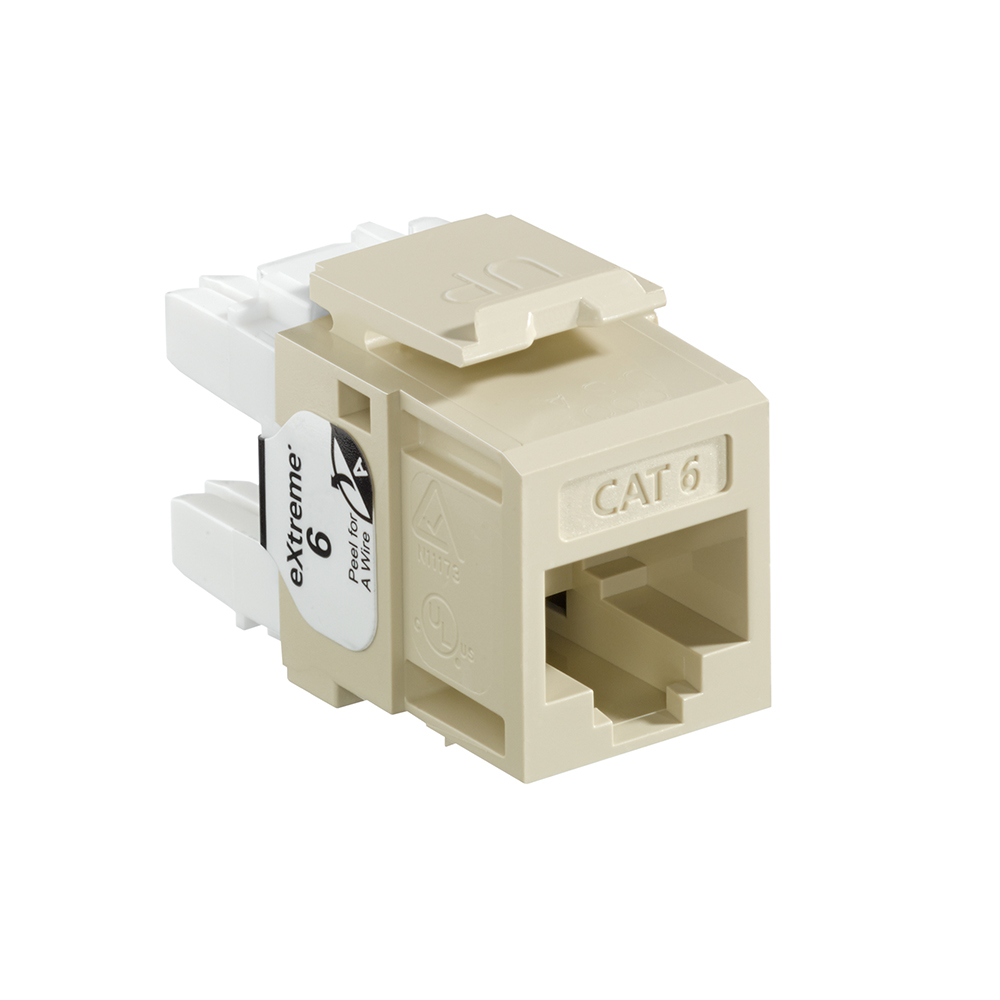

    The eXtreme Cat 6 Ivory connector


    The eXtreme Cat 6 connector is designed to be used with all QuickPort compatible products. The connector includes patented Retention Force Technology which promotes consistent performance over the life of the system. It features unique pair separation towers allowing for quicker and easier terminations. The connector is built on a 180-degree configuration with the punch field in the back, allowing for rear termination.

    FEATURES
    • Terminates 26-22 gauge solid conductors
    • Capable of multiple re-terminations
    • Gas-tight IDC connectors prevent corrosion
    • Dual-layer T568B/T568A wiring label simplifies punchdown
    • Patented Retention Force Technology protects tines from damage and increases system longevity
    • Pair Separation Tower design facilitates separation of conductors and minimizes untwisting
    • 180-degree configuration allows for rear termination
    • Available in 13 ANSI/TIA-606-B compatible colors for color coding or organization
    • Available individually, in bulk packages of 25, and in bulk packages of 150 with a JackRapidTM Punchdown Tool

    DESIGN CONSIDERATIONS
    • Use in any QuickPort housing to support eXtreme Cat 6 UTP connectivity in surface-mount, flush-mount, or modular
    furniture outlets and field-configurable panels
    • Can be used in conjunction with other QuickPort snap-in modules for voice/data and video applications over UTP, coax, and fiber

    STANDARDS COMPLIANCE
    • ANSI/TIA-568-C.2
    • ISO/IEC 11801
    • ANSI/TIA-1096-A (formerly FCC Part 68)
    • cULus Listed
    • IEEE 802.3at (Type 1) Power over Ethernet (PoE) up to 15.4 watts
    • IEEE 802.3at (Type 2) PoE+ up to 30 watts
    • IEEE 802.3bt (Tpe 3) PoE+ up to 60 watts
    • IEEE 802.3bt (Type 4) PoE+ up to 100 watts
    • Cisco Universal Power Over Ethernet (UPOE) up to 60 watts
    • Power over HDBaseTTM (POH) up to 100 watts

    PHYSICAL SPECIFICATIONS
    Materials:  Connector Body: High-impact, fire-retardant plastic rated UL 94V-0.
                        Spring-Wire Contacts: High-quality copper-based alloy, plated with 50 micro-inches of gold over 100
                        micro-inches of nickel for lowest contact resistance, maximum life.

    Environmental Conditions:

                        Storage Temperature: -40 ºC to +70 ºC
                        Operating Temperature: -10 ºC to +60 ºC

    SPECIFICATION

    The connector shall meet or exceed the requirements for channel- and component-level performance as described in ANSI/TIA-568-C.2 Category 6 standards, as well as the Class E requirements described in ISO/IEC 11801. The connector shall be individual snap-in style. The connectors shall also be in compliance with all National Electrical Codes; compliant with ANSI/TIA-1096-A; UL listed; and independently verified. In addition to Category 6 compliance, the connector shall
    have the ability to support high-megabit and shared-sheath applications. All plastics used in construction of the connector bodies shall be fire retardant with a UL flammability rating of 94V-0. Termination of all connectors shall be 110-type insulation displacement connectors (IDC). The connector shall provide a ledge directly adjacent to the 110-style termination against which the wires can be terminated and cut in one action by the installation craftsperson. Connector wiring is
    universal and will accommodate installation color codes for T568A and T568B wiring schemes. The termination field shall be in the rear for easy access. The connector shall fit in a variety of telecommunications wallplates, outlets, and field-configurable patch panels and patch blocks.
