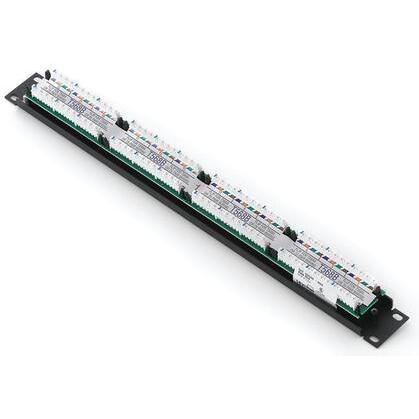

Cat 5e Flat Universal Patch Panel, 24-Port, 1RU, Black
Leviton Cat 5e Flat 110-Style Patch Panels and Patch Blocks are ideal for modular cross connection and available in a multitude of port densities to meet the needs of high-speed data applications. Craft-friendly 110 punchdowns on the rear of the panel make installation easy.
FEATURES
- Patented Retention Force Technology protects tines from damage and increases system longevity
- Craft-friendly installation
- Universal T568A and T568B wiring cards for 110-style IDC terminations
- Color-coded front labeling for easy port identification (ANSI/TIA-606-C compliant)
- Terminates 26-22 gauge solid conductors
- Centralized labeling (available on 48-port) promotes greater visibility of labels when patch cords are routed into horizontal cable management above and below the patch panel
- Capable of multiple re-terminations
- Panel available with patented magnifying lens label holder for easy reading
- Will exceed IEEE 802.3bt standard up to 0.5 amps per conductor(100 watts) continuously
- ETL verified to meet the IEC 60512-99-002 standard for support of IEEE 802.3bt Type 4 PoE (90-watt) applications
- DESIGN CONSIDERATIONS
- Mounts on 19-inch equipment racks
- Panel offered in 12-, 24-, 48-, 96-port configurations and 12-port U89 Block for wall-mount applications
- Connector modules are in groups of six
- Includes rear cable management bars
- Use star washers for grounding in rack-mount installations
- STANDARDS COMPLIANCE
- ANSI/TIA-568.2-D (Cat 5e)
- ISO/IEC 11801-1 (Class D)
- ANSI/TIA-1096-A (formerly FCC Part 68)
- IEC 60512-99-002
- cULus Listed
- IEEE 802.3bt PoE Type 1 (15.4 Watts) formerly 802.3af, Type 2 (30 Watts) formerly 802.3at, Type 3 (60 Watts),
Type 4 (90 Watts) - Cisco UPoE (60 Watts), UPoE+ (90 Watts)
- Power over HDBaseT™ PoH (95 Watts)
- WARRANTY INFORMATION
For a copy of Leviton product warranties, visit
www.leviton.com/warranty. - ELECTRONIC FILES
For CAD files, typical specs, or technical drawings
(.DXF, .DWG), visit www.leviton.com
