BIX 25 Pair Block Cat5e (QCBIX1A4)
Internal Reference :Description :
PNBIX-1A4
Internal Reference:
PNBIX-1A4
BIX 4 PAIR TERMINATION
25 pair Bix Mount (Cat 5e)
BIX Distribution Connectors: Category 5

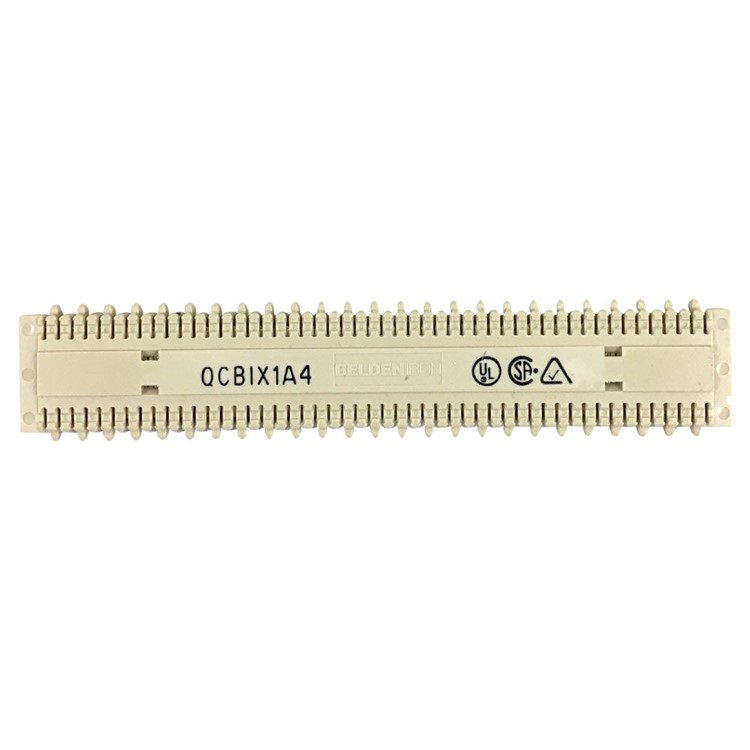

The BIX Distribution Connector is a 25-pair
connector. The connector's symmetrical construction allows termination
of cables on one side and cross-connect jumper wires or BIX patch cords
on the other. Each BIX connector is equipped with 50 double-ended
Insulation Displacement Connection (IDC) clips for terminating plastic
insulated solid copper conductors without stripping. The connector is
built with two staggered rows of IDC clips enclosed in a three-layer
construction of fire-retardant plastic wafers. Pair splitters on each
side of the connector facilitate wire insertion.
FEATURES & BENEFITS
- Robust and installer-friendly design to reduce installation costs
- High-density connector to reduce installation space requirements
- Staggered IDC clips to ensure superior transmission performance
- Built-in pair splitters to facilitate wire insertion
- Fully enclosed clips in plastic housing to prevent injuries and protect connections
- Snap into BIX Mounts for easy insertion and removal
- Mix and match modular flexibility to accommodate different installation size requirements.
APPLICATIONS
- Horizontal distribution or equipment terminations in telecommunications rooms and main distribution rooms
- Interconnection terminations in consolidation points
TECHNICAL SPECIFICATIONS
Physical Characteristics
Dimensions (H x W x D) 9.4 x 168.4 x 32.77 mm (0.37 x 6.63 x 1.29 in.)
Materials
- Housing material: fire-retardant thermoplastic rated UL94V-0, beige
- IDC clip: copper alloy with tin plating over nickel.
Mechanical Characteristics
IDC Clip
- Gas-tight connection — insulation slicing of 22, 24 and 26 AWG (0.64, 0.5 and 0.4 mm) plastic insulated solid copper conductors
- Durability: 200 insertions of any combination of wire gauge.
Electrical Characteristics
- Dielectric strength: 1,000 V RMS at 60 Hz for 1 minute
- Current rating: 1.5 A maximum
- Insulation resistance: 100 MΩ minimum between clips
- Contact resistance: 1 mΩ per contact.
INSTALLATION TIPS
- Plan the telecommunications room layout prior to ross-connect installation
- Use the QCBIX1A Connector for terminating multi-pair cables
- Use the QCBIX1A4 Connector for terminating 4pair cables
- Label each connector carefully for future reference ad ease of administration
- Connection made using the BIX Connecting Tool
