Power Cord 5-15P to C19 14AWG - 15A Heavy Duty SJT

Internal Reference :
Description :

  • Length
    • 3'
    • 6'
    • 12'

This combination does not exist.

10.80 $ 10.8 CAD 10.80 $

0.00 $

Availability: In Stock
Quantity:



Overview

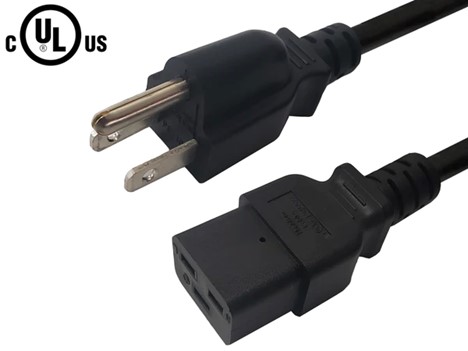

This power cord consists of a 5-15P male on one end and a C19 female on the other end. It is typically used to connect a server or UPS to a PDU or a wall outlet. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. The connectors premium quality ensures a snug fit with receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.

Heavy Duty SJT Jacket

Molded strain relief combined with a heavy duty SJT jacket makes for a high quality, robust cable.

100% Continuity and High Voltage Tested

All cables are 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.

c(UL)us Approved

Both cable and connectors use to manufacture these assemblies are c(UL)us approved. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector.


Specifications

Physical Characteristics
Color Black
Number of Conductors 3 Conductor
Wire Gauge 14 AWG
Jacket Heavy duty SJT
Jacket Material 100% Virgin PVC - Polyvinyl Chloride
Jacket Fire Rating VW-1
Strain Relief Molded 100% Virgin PVC
Temperature Rating -20 deg C to 105 deg C
Connector(s)
Connector A IEC 60320 C19
Connector B NEMA 5-15P
Performance
Power Rating 15 Amp / 125 Volt
Approvals
C19 c(UL)us
5-15P c(UL)us
Cable c(UL)us
ISO ISO 9001:2000, ISO 14000
Environmental
RoHS Yes
Reach Yes
Conflict Minerals Yes
Packaging Information
Package Quantity 1
Warranty Information
Warranty Limited Lifetime
Cable Weights
1ft 3ft 6ft 12ft
0.25 lbs 0.53 lbs 0.73 lbs 1.35 lbs

CAUTION NOTE: While 100% of the components for this cord are UL approved, UL does not certify or allow configurations where the receptacle amp capabilities exceed those of the plug as a General Use item. Cablek urges caution when using this product and is not responsible is any way for any damages caused by using this cord. It is the responsibility of the user to determine if the configuration is dangerous or could cause damage in any way.


Specifications

Length 3' or 6' or 12'
