Power Cord NEMA L5-15P to NEMA L5-15R - 14 AWG
Internal Reference :Description :
Power Cord NEMA L5-15P to NEMA L5-15R - 14 AWG

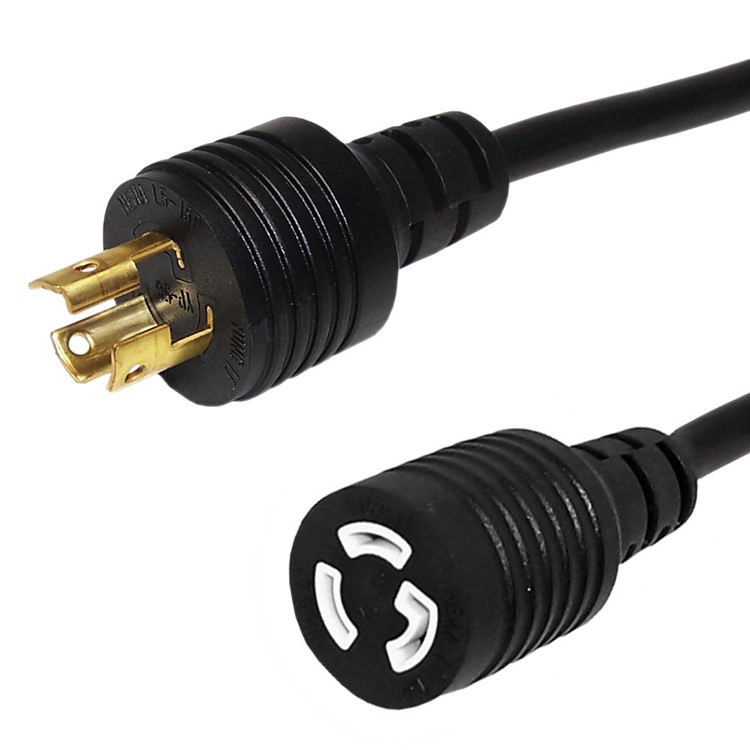

This power cord consists of a L5-15P male on one end and a L5-15R female on the other end. It is typically used as an extension cable. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. The connectors premium quality ensures a snug fit with receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Number of Conductors | 3 Conductor |
| Wire Gauge | 14 AWG |
| Jacket | Heavy Duty SJT |
| Jacket Material | 100% Virgin PVC - Polyvinyl Chloride |
| Jacket Fire Rating | FT2 |
| Strain Relief | Molded 100% Virgin PVC |
| Temperature Rating | -20 deg C to 105 deg C |
| Connector(s) | |
| Connector A | NEMA L5-15P |
| Connector B | NEMA L5-15R |
| Performance | |
| Power Rating | 15 Amp / 125 Volt |
| Approvals | |
| L5-15P | c(UL)us |
| L5-15R | c(UL)us |
| Cable | c(UL)us, CSA |
| ISO | ISO 9001:2000, ISO 14000 |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
All of the components are UL approved. However UL does not certify or allow configurations where the receptacle amp capabilities exceed those of the plug as a General Use item. Cablek urges caution when using this product and is not responsible is any way for any damages caused by using this cord. It is the responsibility of the user to determine if the configuration is dangerous or could cause damage in any way.
Specifications
| Length | 10' or 15' |
