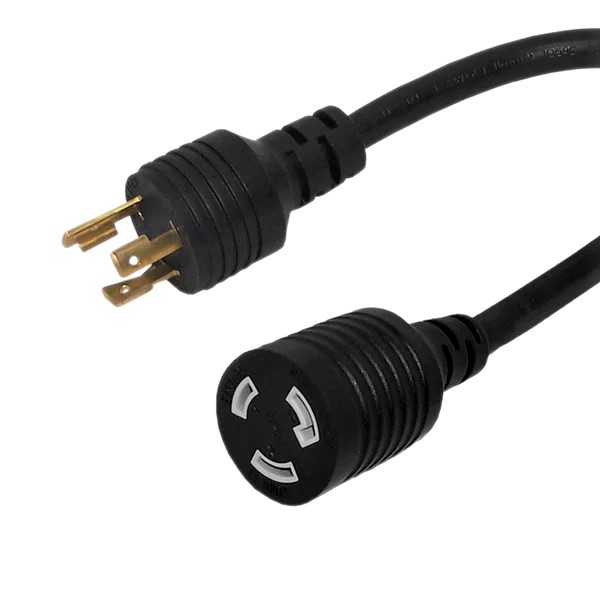

Power Cord NEMA L6-20P to NEMA L6-20R
Internal Reference :Description :
L6-20P Male to Female Extension Power Cable
Constructed with UL mandated inner plastic frame molds to enhance terminal alignment and high quality molds
- Premium quality connectors ensure a snug fit into PDU receptacles
- Wire jackets and connector moldings are manufactured with ONLY 100% virgin PVC compound which yields better quality and flexibility
- Each assembly is 100% continuity and HVT (High Voltage) tested and inspected
- Fully manufactured in a UL approved, ISO 9001:2000, ISO 14000 and Sony green facility
- All cables are 100% RoHS and REACH compliant
- Lifetime manufacturers warranty
Specifications
- Gauge: 3C 12AWG
- Power Rating: 20 Amp/250 Volt
-
Connectors: 1 x NEMA L6-20P - CSA/cUL
1 x NEMA L6-20R - cUL - Cable Jacket:: Heavy duty SJT
- Temperature rating: -20C to 105C degree
- Ratinngs: CSA/cUL
Cablek #
PCC-L620PL620R-10
PCC-L620PL620R-15
Specifications
| Length | 10' or 15' |
