1m Splitter Cable External mini-SAS (SFF-8088) to 4x External mini-SAS (SFF-8088) 6G - 30AWG
Internal Reference :Description :
#CABLEK:
SFF-8088/4X-8088-1M
Internal Reference:
SFF-8088/4X-8088-1M

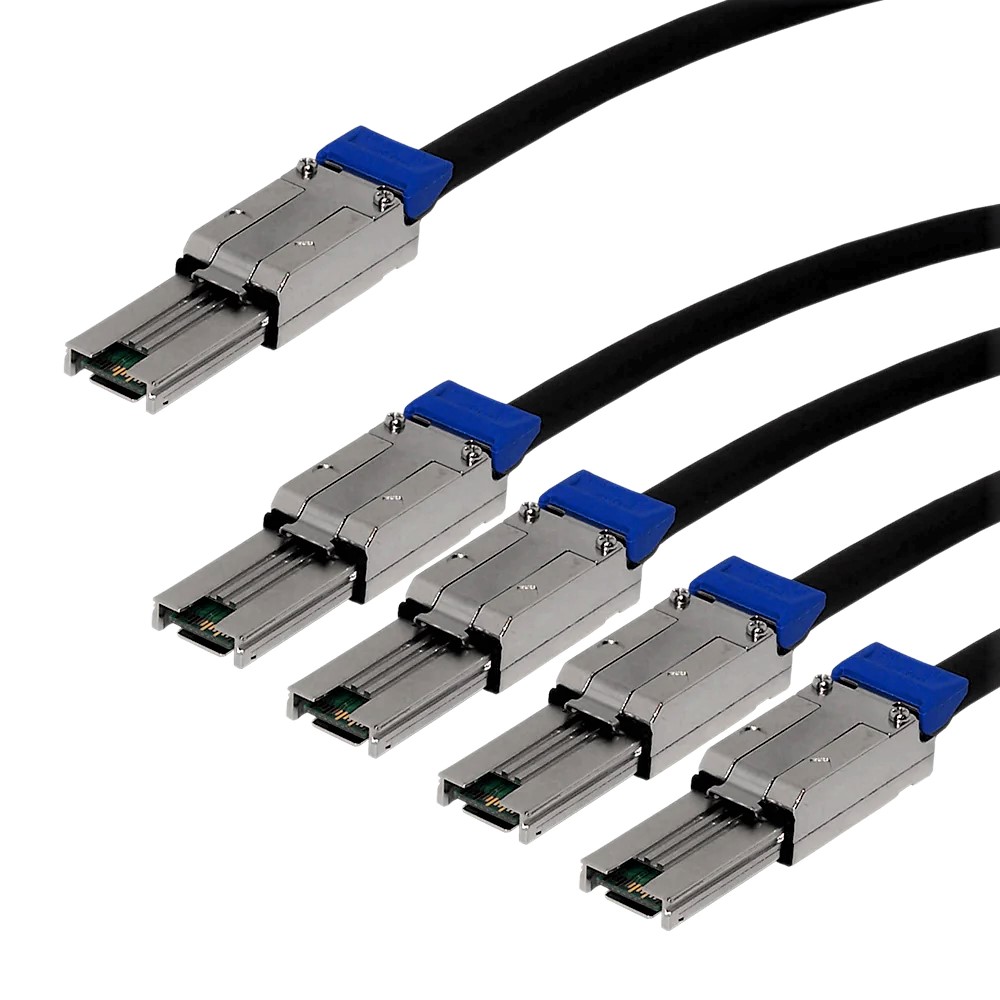

1m Splitter Cable External mini-SAS (SFF-8088) to 4x External mini-SAS (SFF-8088) 6G - 30AWG
This external universal key Mini-SAS cable has a Mini-SAS (SFF-8088) connector on one end and four Mini-SAS (SFF-8088) connectors on the other. It is typically used to connect external Mini-SAS drives, servers and switches.
Specifications
Physical Characteristics | |
---|---|
Length | 1 meter |
Impedance | 100±5 ohm |
Application | SAS 6G Use |
Wire Gauge | 30AWG |
Cable Jacket Material | PVC |
Contact Plating | Gold Plated |
Connector Material | Zinc Die Cast, Nickel Plated Back Shells |
Connectors | |
Connector A | 1 - External Mini-SAS (SFF-8088) |
Connector B | 4 - External Mini-SAS (SFF-8088) |
Environmental | |
RoHS | Yes |
Packaging Information | |
Packaging Quantity | 1 Cable |
Product Weight | 0.75 lbs [0.3kg] |
Warranty Information | |
Warranty | Limited Lifetime |
