Full Motion Mount TV Mount For Flat and Curved LCD/LEDs - Fits Sizes 50 to 90 inches

Internal Reference :
Description :
#CABLEK:

TR-TVM-5090

    This combination does not exist.

    149.00 $ 149.0 CAD 149.00 $

    149.00 $

    Availability: In Stock
    Quantity:

    Internal Reference: TR-TVM-5090

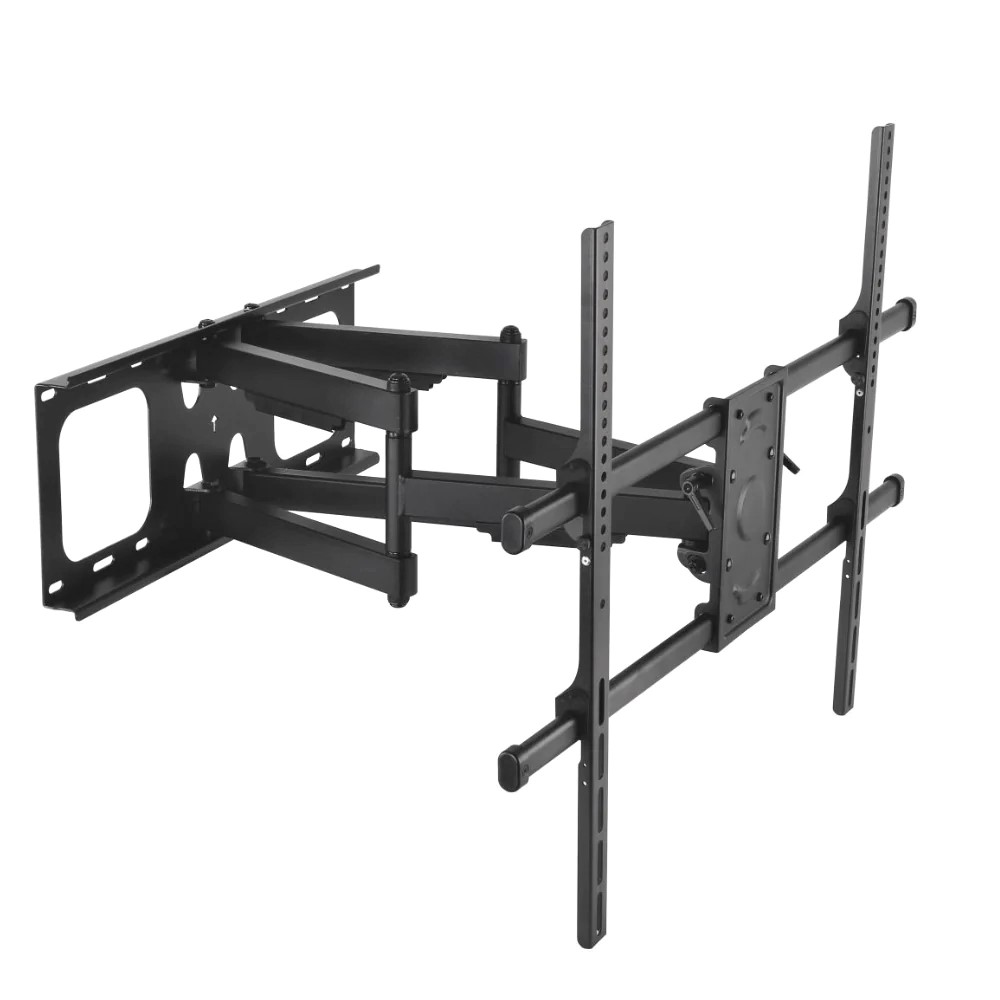

    Full Motion Mount TV Wall Mount Bracket for Flat and Curved LCD/LEDs - Fits Sizes 50 to 90 inches - Maximum VESA 800x600


    This swivel, tilting pan and extend wall mount bracket is designed to hold most 50 inch to 90 inch flat screen displays with a maximum VESA hole pattern of 600x800. It offers a up to a +5° to -15° tilt and a -60° to +60° swivel. It can be used in both residential and commercial environments.

    Full Motion Makes any Seat, the Best Seat

    This full motion TV mount bracket has swiveling arms and free-tilting design to give you maximum viewing flexibility and multiple viewing angles. It can be pulled out from the wall (635mm extension) and angled towards a separate viewing area, with a quick lock and release system to keep the TV in place with no tools required.

    Save Space and Keep Everything Organized

    The heavy-duty steel constructed mount provides a solid hold for even the largest TVs. The mount also features built-in level adjustment to ensures perfect positioning and cable management to keep everything organized.

    The Ideal TV Mount for Many Possibilities

    This TV mount offers a wide VESA spacing to accommodate larger TVs from 50 inch and up to 90 inch flat and curved displays. It can also be used on wood, masonry or concrete construction.


    Specifications

    Physical Characteristics
    Mounting Style Tilting & Swivel Wall Mount
    Color Black
    Material Steel
    Mounting Pattern VESA 200x200,300x200,300x300,400x200,400x300,400x400,600x400,800x400,800x600
    Screen Size 50 - 90 inches [127 - 228cm]
    Weight Capacity 165 lbs [75kg]
    Tilt -15° ~ +10°
    Swivel -60° ~ +60°
    Profile 2.7 - 25 inches [69 - 635mm]
    Level Adjustment -3° ~ +3°
    Screen Freely Tilting
    		 No
    Panel Type
    		 Detachable Panel
    Wall Plate Type
    		 Fixed Wall Plate
    Cable Management
    		 Yes
    Anti-theft
    		 No
    Bubble Level
    		 Hook-on Bubble Level(Included in Components Package)
    Installation Double Stud(406mm/450mm/600mm) or Solid Wall
    Approvals
    RoHS Yes
    Reach Yes
    Packaging Information
    Package Quantity 1
    Mounting Hardware 4 - M5x14 Screws
    4 - M6x14 Screws
    4 - M6x30 Screws
    4 - M8x30 Screws
    4 - M8x50 Screws
    4 - Rectangular Washers
    8 - Small Spacers
    8 - Big Spacers
    6 - ST6.3x55 Screws
    6 - Concrete Anchors
    4 - D6 Washers
    Product Weight 26.05lbs [11.8kg]
