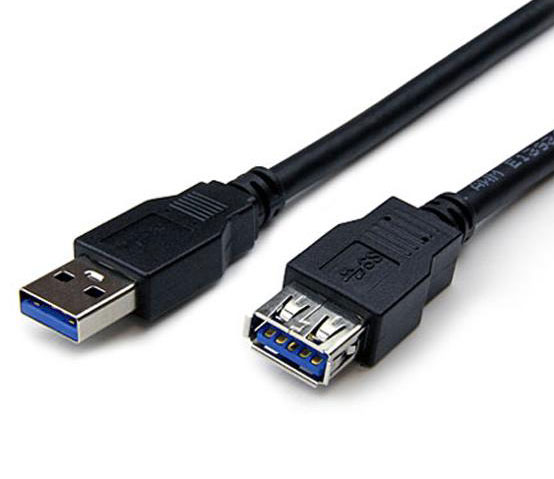

USB3.0 Extension Cable A Male to A Female
Internal Reference :Description :
SuperSpeed USB 3.0 cable A-A Male Female Extension
SuperSpeed
USB 3.0 extension cable (A-A) Male to Female offers a durable, high
quality connection that harnesses the full capability of the USB 3.0
standard.
No or little impact on data transfer rate, even when connecting two 10 feet cables, see note below*
Designed for next-generation SuperSpeed USB device connections, this USB 3.0 A to A Male/Female extension cables used to extend a male male A-A cable, delivering a throughput of up to 4.8Gbps when used with a USB 3.0 host and device - an astounding 10x the capability of USB 2.0 (480Mbps).
It is a Duplex cable simultaneously sending and receiving data yet is backwards compatible with computer USB 2.0 and USB 1.1 ports - these cables also allow connection of USB 3.0 devices to legacy USB 2.0 computers.
USB 3.0 A to A device cables feature high quality Shielded Twisted Pair (STP) construction, helping to prevent electro-magnetic interference and ensuring reliable data communication.
Technical Specifications
-
NOTE PN USB3-AA-MF-1 AS A LENGTH OF 6-8"
- Connector 1: 9 pin USB 3.0 A Male
- Connector 2: 9 pin USB 3.0 A Female
- Type and Rate: USB 3.0 - 4.8 Gbit/s
- PC and Mac compatible
- Supports plug and play connections for devices such as external hard drives, modems, printers, scanners, VOIP devices other USB peripherals
- Wire Guage: 28 AWG
- Cable Jacket Type: PVC - Polyvinyl Chloride
- Cable Shield Type: Foil shielded twisted pair
- Color: Blue
- Shipping (Package) Weight: 0.2 lb [0.09 kg]
- Warranty: Lifetime
*Note: Connected directly to a PC USB3.0 port, or at the end of 2 back to back 10 feet extension cables, the data transfer rate was the same when copying large files to/from a USB3.0 flash drive. We do not guarantee this result with all peripherals, but little speed degradation should be noticed.
USB 3.0 Cable SuperSpeed
USB 3.0
cable is the next generation cable which is also called the super-speed
USB cable. USB 3.0 cable is designed to provide 10 times the data
transfer speed than USB 2.0, the data transfer rate of USB 3.0 will come
up to 4.8 Gbps theoretically.
USB 3.0
cable retains the former USB products plug and play feature and it is
fully compatible with former USB 2.0. USB 3.0 cable connectors are added
5 channels compared with USB 2.0, 4 of the 5 channels are used for a
full duplex data transmission.
USB 3.0
cable is not only higher speed but more efficient in power supply. Many
digital products in the market will need to be powered via USB
interface, USB 3.0 cable power ability is 900mA compared with former USB
500mA per port, this feature of USB 3.0 cable help make devices like
mobile hard drives use less extra power lines and the USB hub could
connect more equipment at the same time.
This means that more power-hungry devices could be
bus powered, and battery powered devices that previously charged using
bus power could potentially charge more quickly. |
USB Motherboard Connections | |
|
Specifications
Length | 1' or 1.5' or 3' or 6' or 10' or 15' |
