USB3.1 Type-C Straight Male to Type-C Right/Left Angle Male Cable

Internal Reference :
Description :

  • Length
    • 1.5'
    • 3'
    • 6'

This combination does not exist.

15.90 $ 15.9 CAD 15.90 $

0.00 $

Availability: In Stock
Quantity:

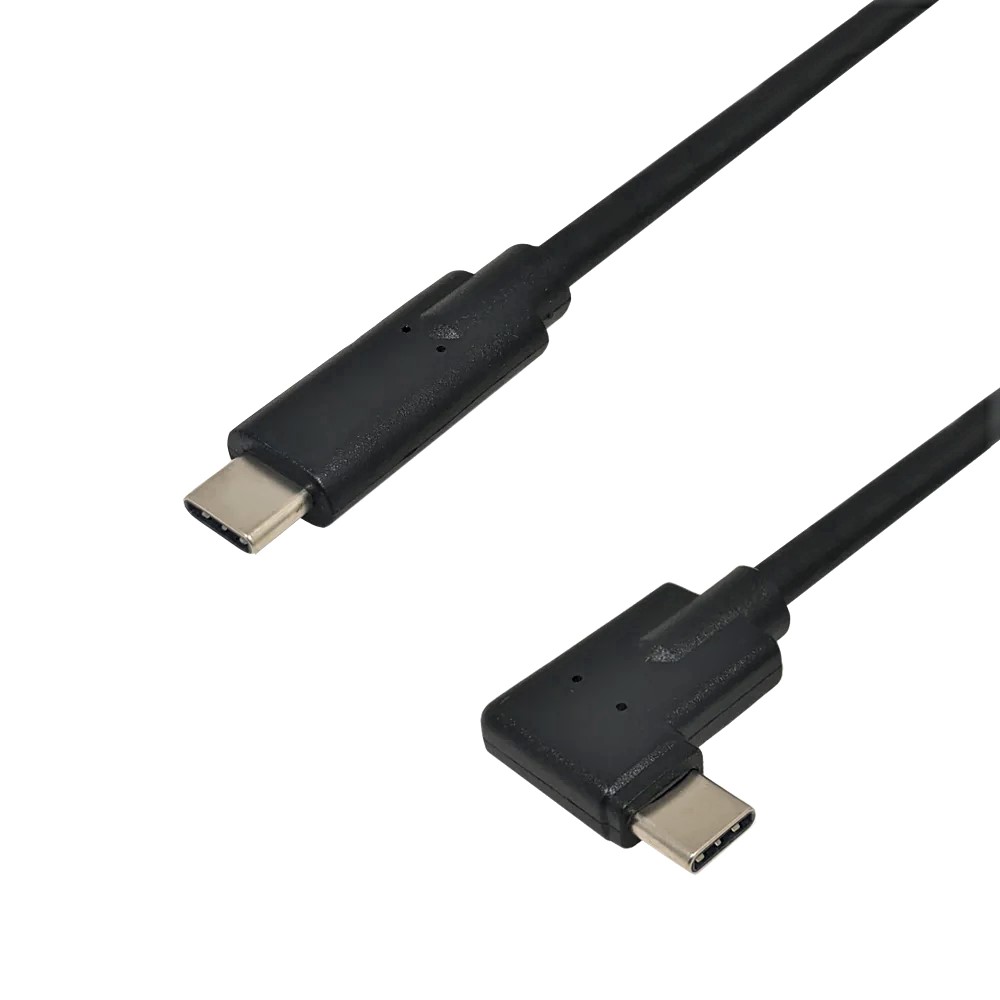

USB 3.1 Type-C Straight Male to Type-C Right/Left Angle Male Cable


This USB 3.1 cable consists of a USB straight Type-C male on one end and a USB right angle or left angle Type-C male on the other end. It is capable of transferring data at 10Gbps maximum and 5Gbps minimum and is typically used to connect USB 3.1 peripherals as well as charge and sync USB Type-C mobile devices. USB 3.1 is backwards compatible with previous generation USB devices and is also compatible with Thunderbolt™ 3 ports.



Physical Characteristics
Color Black
Connector Plating Nickel Plated
Contact Plating Gold Plated
Cable Diameter 5.4 mm
Jacket Material PVC - Polyvinyl Chloride
Strain Relief Molded PVC
Connector(s)
Connector A USB 3.1 Type-C Straight Male
Connector B USB 3.1 Type-C Right/Left Male
Performance
Rating USB 3.1 SuperSpeed - Gen 2
Speed 10 Gbps (1.5ft, 3ft)
5 Gbps (6ft)
Power 3 Amps
Environmental
RoHS Yes
Reach Yes
Conflict Minerals Yes
Packaging Information
Package Quantity 1
Warranty Information
Warranty Limited Lifetime

Cable Weights

1.5ft 3ft 6ft
0.04 lbs 0.12 lbs 0.24 lbs


Specifications

Length 1.5' or 3' or 6'
