USB3.1 Type-C to DisplayPort 8K@30Hz Adapter - DP 1.2 Alt Mode
Internal Reference:
USB3.1A-CM-DPF1.4
USB 3.1 Type-C to DisplayPort 8K@30Hz Adapter - DP 1.2 Alt Mode

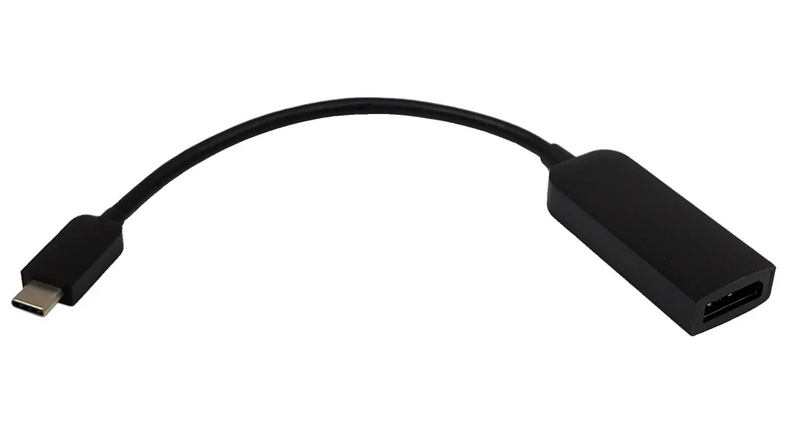

The USB Type-C to DisplayPort adapter consists of a USB 3.1 Type-C male on one end and a DisplayPort v1.2 female on the other end. It allows you to connect an extra display from your laptop's USB Type-C port. This adapter provides video output of 8K@30Hz resolution, high throughput using the USB 3.1 bus and supports high definition monitors. The adapter can either extend or mirror your source. It can work on all Type-C and Thunderbolt 3 hosts that support DP Alt mode (including DP1.2 Alt mode).
Specifications
| Physical Characteristics | |
|---|---|
| Cable Length | 6 inches |
| Color | Black |
| Connector Plating | Nickel |
| Connector(s) | |
| Connector A | USB 3.1 Type-C Male |
| Connector B | DisplayPort v1.2 Female |
| Performance | |
| Resolution | Up to 8K (7680 x 4320) @ 30Hz |
| Speed | Per lane data rates of 8.1Gbps (HBR3), 5.4 Gbps (HBR2), 2.7 Gbps (HBR) and 1.62 Gbps (RBR) |
| Version | DisplayPort 1.2 Alt mode |
| Power Source | USB Bus Power (No External Power Supply) |
| Compatibility | |
| Operating System | Windows Compliant |
| Mac Compliant | |
| Certifications | |
| FCC | Yes |
| CE | Yes |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
