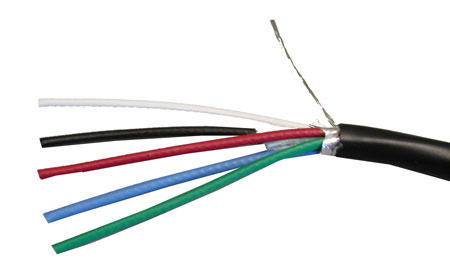

5 Mini coaxial 75 Ohm Video Cable

RGB 5 COAX HIGH QUALITY CABLE

Cablek's RGB 5 Coax Hi-Definition Audio Video Interconnect Cable is used with TV cameras, HDTV monitors and computer VDT VGA monitors. Main application: With its low attenuation and precision impedance control, it is designed to carry hi-bandwidth analog video signals over long distances with minimum degradation.  It is used to make any of the following: RGBHV  - RGB + H and V sync RGBS    - RGB + Composite sync UXGA - 5 X BNC Cables Hi-Resolution Cable Component video cables to UXGA Cables (Hi Resolution) Component RCA-BNC (YPbPr) Can be used with both BNC, RCA, and HD15(VGA) connectors

 Specifications:

• Spool Size: 500 Feet
• Number of Coax: 5 (Red, Green, Blue, WHITE, BLACK)
• Nom. Characteristic Impedance: 75 Ohms
• AWG: 30
• Stranding: 7x38
• Attenuation: 8dB/100feet @ 200Mhz
• Low capacitance 18.1pf /ft.
• Propagation delay : 1.3 ns/ft.
• Conductor Material: Tinned Copper
• Insulation Material: Foam Polyolefin
• Coax Shield: 95% Tinned Copper Spiral
• Overall Shield: Aluminum Polyester with 24 AWG Stranded Tinned Copper Drain Wire + 85% Tinned Copper Braid Shield
• Overall Diameter: 0.315 Inches (8.0mm)
• Outer Jacket Material: Black Soft PVC
• Temperature Rating: 80C
• CL2 & FT-4 Rated
• UL / CSA Listed
• RoHS Compliancy
• Lifetime Warranty

TERMINATION: Can be used with the following connectors

• VGA  HD15
• BNC
• RCA
