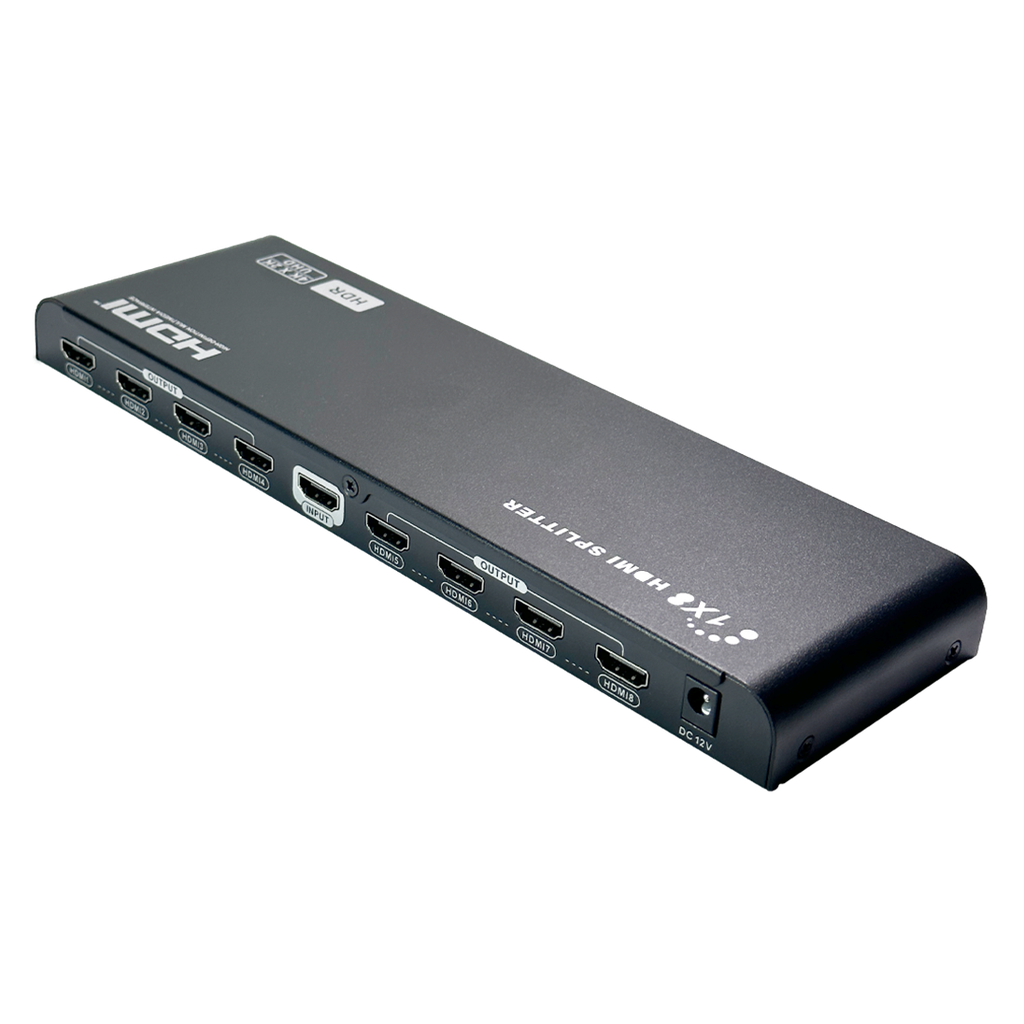

1x8 HDMI Splitter, 4Kx2K@60Hz, EDID, HDCP 2.2, YUV 4:4:4 - Displays one HDMI device to eight HDMI displays simultaneous
Internal Reference :Description :
#CABLEK:
VSP-HDMI-418F
Internal Reference:
VSP-HDMI-418F
1x8 HDMI Splitter, 4Kx2K@60Hz, EDID, HDCP 2.2, YUV 4:4:4
This 1x8 HDMI splitter enables you to display one HDMI device to eight
HDMI displays simultaneous. It is typically used to connect a HDMI
source such as DVD player, Blu-ray player, satellite receiver or gaming
system to HDMI displays such as HDTVs, HD projectors or HDMI monitors.
The splitter performs at HDMI 2.0 resolutions - 4K at 60Hz with 4:4:4
chroma subsampling and a transmit bandwidth up to 18Gbps. It also
supports HDCP 2.2 and is backward compatible with 4K 30Hz and 1080p
displays.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Housing | Metal Enclosure |
| Operating Temperature | 0℃～60℃ |
| Power | |
| Input Voltage | 240V |
| Power Supply | 12V/1A DC |
| Power Consumption | <8W |
| Compatibility | |
| PC to Monitor | Yes |
| PC to TV | Yes |
| DVD to Monitor | Yes |
| DVD to TV | Yes |
| Connector(s) | |
| Input | 1 x HDMI Female |
| Output | 8 x HDMI Female |
| Performance | |
| HDMI Resolution | Compatible with HDMI1.4,HDMI2.0 |
| HDMI Version | Compatible with HDMI1.4,HDMI2.0 |
| 3D Video | Yes |
| HDCP Compliant | Yes, Supports HDCP2.2/1.4 |
| HDR Support | Yes |
| Audio | Support standard audio and DSDï1/4ˆDirect Stream Digital) and HD(HBR) audio |
| Transmission Rate | 18Gbps |
| Frequency Range | 25MHz~594MHz |
| Input and output TMDS signal | 0.7~1.2Vp-p(TMDS) |
| Input and output DDC signal | 5Vp-p(TTL) |
| EDID management | Support smart EDID management, available to display different resolution monitors at the same time |
| Approvals | |
| Power Adapter | c(UL)us |
| Environmental | |
| RoHS | Yes |
| Certification(s) | |
| CE | Yes |
| FCC | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 1.04 lbs [0.47kg] |
| Package Weight | 1.81 lbs [0.83kg] |
| Dimensions | 262mm(L) x 81.6mm(W) x 23.5mm(H) |
| Contents | |
| Included in Package | 1 - HDMI Splitter |
| 1 - DC12V Power Adapter | |
| 1 - Manual |
