Câble DisplayPort mâle vers VGA mâle - 10' - 28AWG CL3/FT4
Référence interne:
DPM-VGA-10

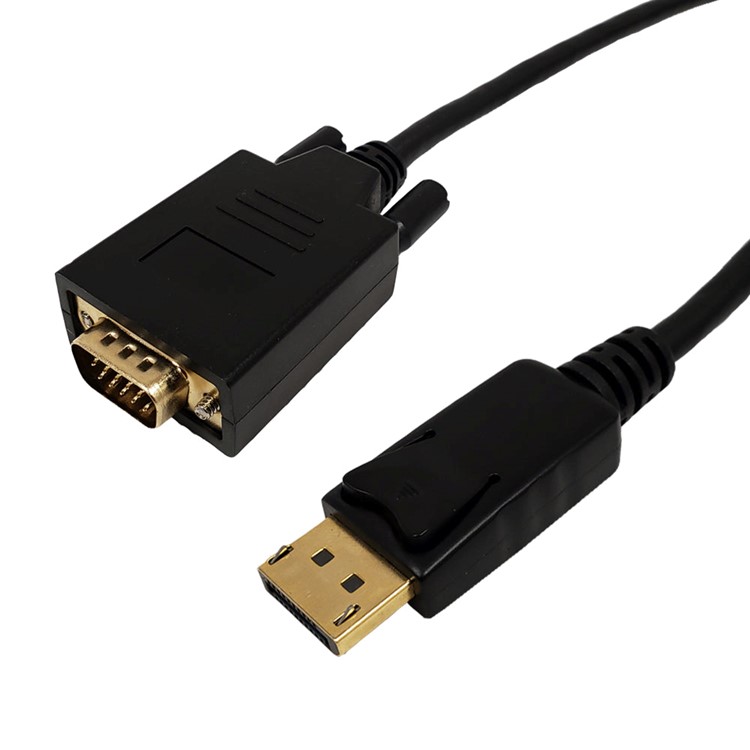

10 Ft DisplayPort Male to VGA Male Cable - 28AWG CL3/FT4
This cable consists of a DisplayPort male on one end and a VGA male on the other end. It is typically used to connect a DisplayPort PC to a VGA monitor. This is an active directional cable that will only work on a DisplayPort source to a VGA monitor and does not work in the reverse.
This cable can be used in common instances - for example, directly connecting your DisplayPort PC to a VGA monitor, rather than using adapters and cables.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Gold |
| Cable Diameter | 5.7 mm |
| Wire Gauge | 28AWG |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Rating | CL3, FT4 Riser Rated |
| Cable Shielding | Yes |
| Temperature Rating | 45 deg C |
| Connector(s) | |
| Connector A | VGA Male |
| Connector B | DisplayPort Male |
| Performance | |
| Resolution | 1080p (1920x1200) |
| Frequency Range | 50/60Hz |
| Bandwidth | 180MHz |
| 3D Support | No |
| DP Version | DP1.1 |
| Approvals | |
| c(UL)us | Yes |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
Spécifications
| Longueur | 10' |
