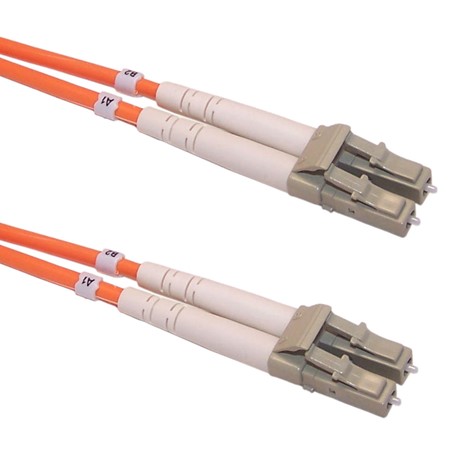

OM1 62.5µ Multimode Duplex OFNR Câble fibre optique
62.5/125 Multimode Duplex Fiber Cable with OFNR Jacket
Cablek's multimode duplex patch cord fiber optic cables are built with premium quality material for fast data transmission. The cable assemblies are composed of OFNR riser rated jackets with connectors that allow easy connection and removal from transmitting and receiving equipment.
Connector options include variations of the following: FC, SC, ST, LC, MU, and MT-RJ.
|
Applications – Telecommunications – CATV – LAN & WAN – Broadband – FTTP |
Features and Benefits – Meet IEC, JIS, Bellcore GR-326 performance – Guaranteed quality; 100% tested & inspected – Custom assemblies available upon request – OEM available upon request – RoHS compliant |
All cables are fully tested to meet or surpass industry standards and to ensure high quality performance, reliability and durability.
Features :
- 62.5 / 125 µm
- 100 % Optically inspected
- Insertion loss testing performed on every connector
- All cables are serialized and test results are recorded
- High-impact connector body and coupling nut
- Color coded coupling nuts to indicate transmit and receive
- Connectors with premium ceramic ferrules
- Cable retention 133N (30 Lbs) as per FOTP-6
- Insertion loss <-0.5 dB (-0.2 dB Typical)
- Custom built cables with short lead times
- Warranty: Lifetime
Specifications
| Attenuation @ 850 nm | 3.0 dB / km |
| Attenuation @ 1300 nm | 1.0 dB / km |
| Maximum tensile load | 480 N / cm |
| Loaded min. bend radius | 5 cm |
| Unloaded min. bend radius | 3 cm |
| Impact resistance | 750 N / cm |
| Crush resistance | 1000 cycles |
| Flex resistance | 7500 cycles |
| Min. bandwidth @ 850 nm | 500 KHz / km |
| Min. bandwidth @ 1300 nm | 500 KHz / km |
| Operating temperature | -20°C > 70°C |
Spécifications
| Longueur | 1 m ou 2 m ou 3 m ou 5 m ou 6 m ou 7 m ou 8 m ou 10 m ou 20 m ou 15 m ou 25 m ou 30 m ou 40 m |
| Connector | LC/LC ou LC/SC ou LC/ST ou MTRJ/LC ou MTRJ/MTR ou MTRJ/SC ou MTRJ/ST ou SC/SC ou ST/SC ou ST/ST |
