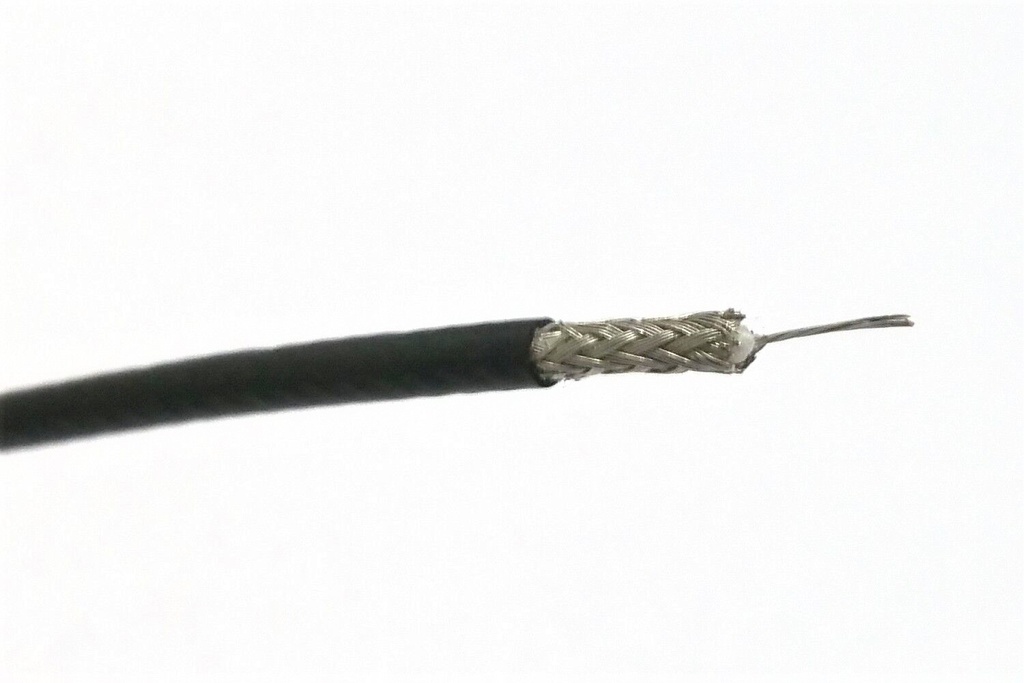

Câble Belden 9221 Mini câble coaxial miniature 75 ohms 30 AWG
Référence interne:
ZBE-9221/500
Mini-coax vidéo Belden, 9221 - 75 Ohms
VIDÉO COMPOSITE 75 Ohms
Câble mini-coax Belden 9221, à impédance de 75 Ohms, pour applications vidéo et transmission RF.
Mini-coax vidéo CABLEK ZBE-9221
Disponible en rouleaux de 500 pieds
Fabriquant: Belden
Conducteur en cuivre étamé 30 AWG (7x38) .012. Isolation en mousse PEHD. Tresse de blindage en cuivre étamé (89 % de couverture). gaine PVC.
Spécifications
| Temp Range, Operating | -40ºC To +60ºC |
|---|---|
| Temp Rating, UL | 60ºC (UL AWM Style 1375) |
| Capacitance | 17.300 |
| Capacitance (Metric) | 56.7613 |
| Delay | 1.30 |
| Impedance | 75 |
| Inductance | .097 |
| Inductance (Metric) | 0.318257 |
| AWM Specification | UL Style 1375 (30 V 60ºC) |
| Voltage, Max. Operating | 30 V RMS (UL AWM Style 1375) |
| Velocity of Propagation (%) | 78 |
| RoHS | Yes |
| EU CE Mark | Yes |
| Weight | 2.8000 |
| Color | BLACK |
| Conductor Size (AWG) | 30 |
| Conductor Material | TC - Tinned Copper |
| Conductor Diameter | .012 |
| Number of Coax | 1 |
| Conductor Stranding | 7x38 |
| Insulation Material | FHDPE - Foam High Density Polyethylene |
| Overall Nominal Diameter | .097 |
| Outer Jacket Material | PVC - Polyvinyl Chloride |
| Outer Shield Coverage | 89 |
| Outer Shield Material | TC - Tinned Copper |
| Outer Shield Type | Braid |
| Amount | 100 ea |
| Conductor - Diameter (Metric) | 0.3048 |
| Overall Cabling - Overall Nominal Diameter (Metric) | 2.4638 |
| SKU | B-9221-100 |
| Manufacturer | Belden |
| Mfr. Part No | 9221 010100 |
| Type | Coax |
