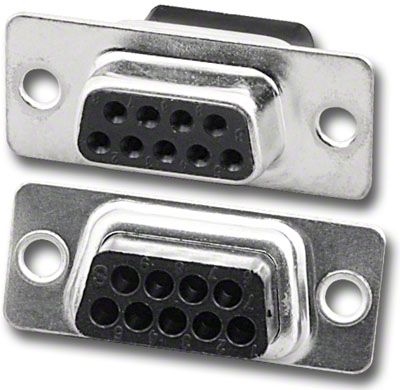

D SUB Crimp Type Connectors

https://www.cablek.com/web/image/product.template/40014/image_1920?unique=32de6ad

2.00 $ 2.0 CAD 2.00 $

0.00 $

Select to see options

  • Connector
  • Gender

This combination does not exist.

D-SUB Standard Density (9 pin, 15 pin, 25 pin, 37 pin, 50 pin)


Features

  • Crimp d-subs available in 5 industry sizes/positions
    • Standard Density (9 pin, 15 pin, 25 pin, 37 pin, 50 pin)
  • Low cost commercial version of military standard
  • Allows for easy loading of only the positions required
  • Crimp contacts (sold separately)
  • Nylon insulator has a minimum contact retention of 10 lbs
  • Contact current rating: 5 amps



Materials

  • Crimp D-Sub Shell: Nickel Or Tin Plated Steel
  • Insulator: Glass-filled thermoplastic,
  • UL94 V-0 (230°C process temp)



Notes


Specifications

Connector DB09 or DB15 or DB25 or DB37 or DB50
Gender Female or Male
