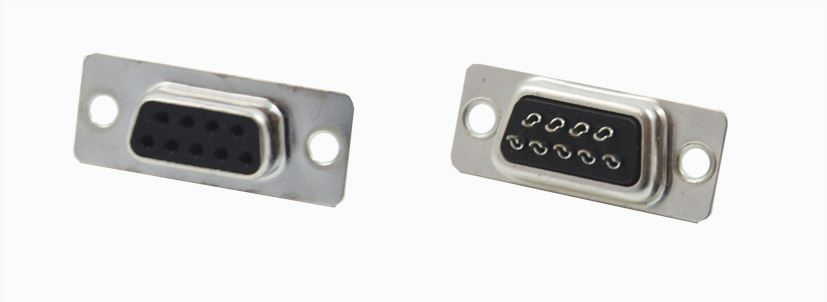

D-SUB Solder Type

Internal Reference :
Description :

  • Connector
    • DB09
    • DB15
    • DB25
    • DB37
    • DB50
  • Gender
    • Female
    • Male

This combination does not exist.

1.90 $ 1.9000000000000001 CAD 1.90 $

5.90 $

Availability: In Stock
Quantity:



D-SUB Solder Cup Standard Density  (9 pin, 15 pin, 25 pin, 37 pin, 50 pin)


Features

  • Standard Density (9 pin, 15 pin, 25 pin, 37 pin, 50 pin)
  • Male nickel or tin plated shells have indents to provide grounding and additional retention
  • Low cost & high performance, non-removable stamped contacts
  • Optional mounting hardware available



Materials

  • Shell: Nickel Or Tin Plated Steel
  • Insulator: Glass-filled thermoplastic. UL 94 V-0
    (230°C process temp)
  • Stamped contacts: Male pins - Brass | Female pins - Phosphor bronze
  • Plating: Gold flash on entire contact


Specifications

Connector DB09 or DB15 or DB25 or DB37 or DB50
Gender Female or Male
