DisplayPort Male-VGA Male-6'

https://www.cablek.com/web/image/product.template/45090/image_1920?unique=054f51b

26.90 $ 26.900000000000002 CAD 26.90 $

26.90 $

Select to see options

This combination does not exist.


Internal Reference: DPM-VGA-6

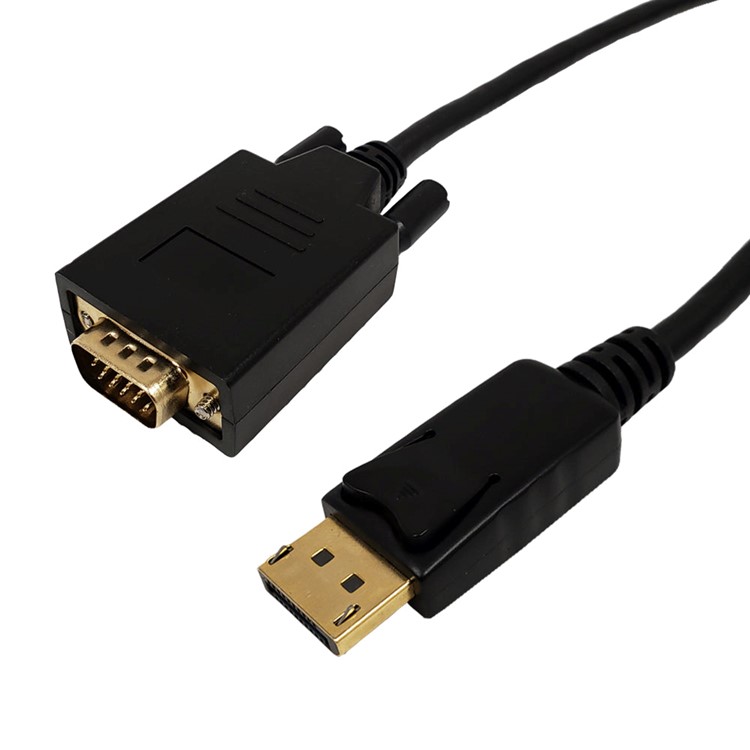

6Ft DisplayPort Male to VGA Male Cable - 28AWG CL3/FT4

This cable consists of a DisplayPort male on one end and a VGA male on the other end. It is typically used to connect a DisplayPort PC to a VGA monitor. This is an active directional cable that will only work on a DisplayPort source to a VGA monitor and does not work in the reverse.

This cable can be used in common instances - for example, directly connecting your DisplayPort PC to a VGA monitor, rather than using adapters and cables.


Physical Characteristics
ColorBlack
Connector PlatingGold
Cable Diameter5.7 mm
Wire Gauge28AWG
Jacket MaterialPVC - Polyvinyl Chloride
Jacket RatingCL3, FT4 Riser Rated
Cable ShieldingYes
Temperature Rating45 deg C
Connector(s)
Connector AVGA Male
Connector BDisplayPort Male
Performance
Resolution1080p (1920x1200)
Frequency Range50/60Hz
Bandwidth180MHz
3D SupportNo
DP VersionDP1.1
Approvals
c(UL)usYes
Environmental
RoHSYes
ReachYes
Conflict MineralsYes
Packaging Information
Package Quantity1
Warranty Information
WarrantyLimited Lifetime
