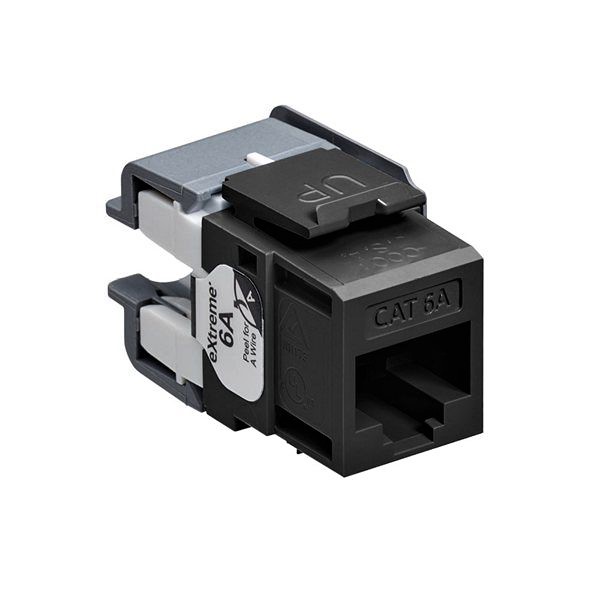

eXtreme 10G QuickPort Connector, Cat 6A

The eXtreme Cat 6A Channel-Rated QuickPort jack is designed to be used with all QuickPort compatible products and features patented injection-molded Cone of Silence™ covers to eliminate alien crosstalk (AXT). The jack includes patented Retention Force Technology™ to promote consistent network performance over the life of the system. Unique Pair Separation Towers facilitate quick, easy terminations. The jack is configured in a 180-degree configuration such that the punch down field is in the back, allowing for rear termination.

eXtreme® Cat 6A connectors include several features that deliver ease-of-use and superior performance.
  • TIA-568-C.2 performance up to 500 MHz to support 10GBASE-T networks
  • Independently tested and verified by Intertek (ETL) to meet all TIA permanent link and channel requirements
  • Patented dual-layer T568A/B label with larger wiring diagrams
  • Patented Cone of Silence® helps suppress alien crosstalk (AXT)
  • Patented Retention Force Technology (RTF) protects against damage from 4- or 6-pin plugs
  • Pair Separation Towers ease conductor separation
  • Backward compatible with Cat 6 and 5e systems, and 100GBASE-T applications
eXtreme Cat 6A component-rated UTP connectors include all the above, plus several exclusive performance-enhancing features:
  • Metalized body helps suppress AXT
  • Triple-stage compensation with multiple patent-pending design features, enhances margin performance and augments AXT suppression
  • Conductor retention feature holds wires during termination
eXtreme Cat 6A QuickPort Jack, Channel-Rated

Features & Benefits:
  • Terminates 26 to 22 AWG solid conductors and 24 to 22 AWG stranded conductors
  • Terminates 26 AWG stranded conductors up to 5 times
  • Cat 6A/Class EA Channel Performance
  • Patented RFT protects against tine damage from 4- or 6-pin plugs
  • Alien crosstalk suppressed by Cone of Silence, metalized body, and new printed circuit board
  • Pair Separation Tower (PST) design facilitates separation of Cat 6A conductors
  • Patented, dual-layer wiring label simplifies punchdown and reduces rework
  • Will exceed IEEE 802.3bt standard up to 0.5 amps per conductor (100 watts) continuously
  • ETL verified to meet the IEC 60512-99-002 standard for support of IEEE 802.3bt Type 4 PoE (90-watt) applications



color Black or Blue or Orange or Red or White or Yellow or Crimson
