Hospital Grade 5-20P to C19 Power Cable, 12AWG SJT (125V 20A)

Internal Reference :
Description :

  • Length
    • 6'
    • 15'
    • 10'

This combination does not exist.

27.90 $ 27.900000000000002 CAD 27.90 $

0.00 $

Availability: In Stock
Quantity:

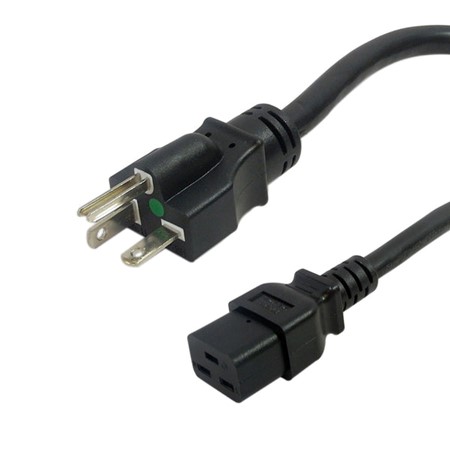

"Green Dot" Hospital Grade 5-20P to C19 Power Cable, 12AWG SJT (125V 20A)

Cablek's power cable consists of a 5-20P hospital grade male on one end and a C19 female on the other end. It is typically used to connect hospital equipment to a wall outlet.

These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. The connectors premium quality ensures a snug fit with receptacles.   Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.


Physical Characteristics

  • Color: Black
  • Number of Conductors: 3 Conductor
  • Wire Gauge: 12 AWG
  • Jacket: Heavy Duty SJT
  • Jacket Material: 100% Virgin PVC - Polyvinyl Chloride
  • Jacket Fire Rating: FT2
  • Strain Relief: Molded 100% Virgin PVC
  • Temperature Rating: -20 deg C to 105 deg C

Connector(s)

  • Connector A: NEMA 5-20P Hospital Grade
  • Connector B: IEC 60320 C19

Performance

  • Power Rating: 20 Amp / 125 Volt

Approvals

  • 5-20P: (UL)
  • C19: (UL)
  • Cable: c(UL), CSA
  • ISO: ISO 9001:2000, ISO 14000

Environmental

  • RoHS: Yes
  • Reach: Yes
  • Conflict Minerals: Yes

Warranty Information

  • Warranty: Limited Lifetime



Specifications

Length 6' or 15' or 10'
