LLR-195 N-Type Male to BNC Male, RF Coax Antenna Cables

Internal Reference :
Description :

  • Length
    • 3'
    • 6'
    • 15'
    • 10'
    • 25'

This combination does not exist.

29.00 $ 29.0 CAD 29.00 $

0.00 $

Availability: In Stock
Quantity:

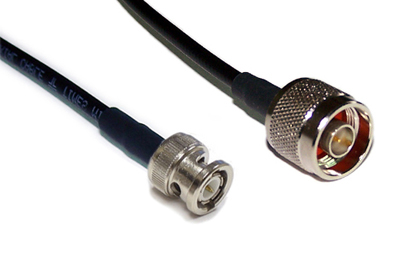

LL-195 N-Type Male to BNC Male

Constructed of premium RF195 low-Loss 50 ohm RF outdoor coaxial cable.
Adhesive heat shrink added on either end for a weather tight seal.
Heavy duty connectors allow for optimum durability and connectivity.

Connectors:
1 x N-Type Male
1 x BNC Male   Features:

  • Made with high performance, high quality 195-series coax cable
  • Excellent low loss characteristics
  • Each assembly is fully tested ensuring the highest quality
  • Widest selection of lengths and connector styles
  • Custom cable lengths available

Applications:

  • Wireless LAN Devices
  • Wi-Fi Radios
  • External Antenna Applications
  • Wireless OEM Applications
  • RF Voice/Video/Data

These are custom made cables. Cablek stocks the necessary components to manufacture all configurations and lengths. Email us with your requirements.

*Actual product may vary from picture.

  Cable Specifications

  • Number of Conductors: 1
  • AWG. Size: 19 Solid 0.037 Bare Copper
  • Nominal D.C.R.: 7.6
  • 7.6 Ohms/M' (24.9 Ohms/km)
  • Insulation: Gas Injected Foamed HDPE
  • Nominal Core O.D.: 0.110"
  • Nominal O.D.: 0.195"
  • Shield Material: Duofoil + 90% tinned copper braid
  • Shield Nominal D.C.R.: 4.2 Ohm/M' (13.8 Ohm/km)
  • Jacket: PVC jacketed 100% sweep tested
  • Nominal Impedance: 50 Ohms
  • Nominal Velocity of Propagation: 77%
  • Nominal Capacitance: 24.3 pF/ft.
  • RoHS Compliant

 Print this page

Specifications

Length 3' or 6' or 15' or 10' or 25'
